- Impact Energy: 24-3740 kNm
- Working Stroke: 1200-1700 mm
- Impact Frequency: 18-100 bpm
- Ram Weight: 3000-220000 kg
Our hydraulic impact hammers offer various models with impact energy ranging from 24kNm to 3740kNm. Our hammers feature a double-layer hydraulic cylinder design and single-cylinder puling for enhanced operational stability. The unique PHC pile cap design effectively protects pile heads during driving. These hammers can be mounted on fixed pile frames or cranes, suitable for sea bridge construction, offshore wind farms, civil infrastructure, soft soil treatment, riverbank protection, utility tunnels, oil and gas extraction, and harbor construction. Customization is available to adapt the hammers to your existing equipment. Our hydraulic impact hammers are compatible with various piles, including concrete piles, steel sheet piles, H-piles, steel tubular piles, and round, square, and hexagonal piles.
Hydraulic Impact Hammer

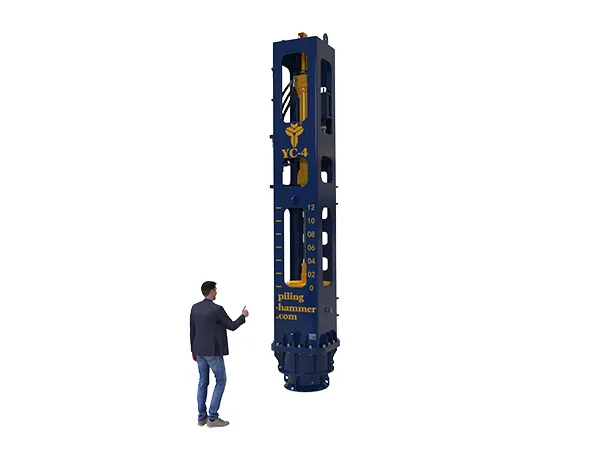

Small Size (Max. Ram Weight 10000KG)
Our small size hydraulic impact hammers are perfect for limited spaces or headroom, with hammer weights ranging from 3000 kg to 10000 kg, delivering strong impact energy for piling. Customization is available to meet your specific requirements. This equipment uses the Trelleborg sealing solutions for superior cylinder sealing, ensuring stable performance.
- Civil Infrastructure Construction
- Sea Bridge Construction
Hydraulic Impact Hammer

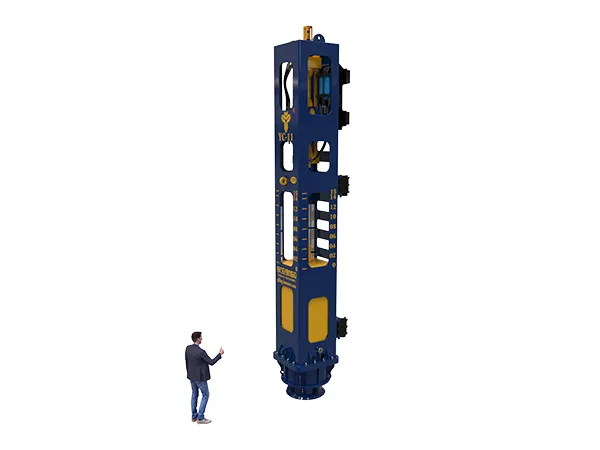

Medium Size (Max. Ram Weight 18000KG)
Our medium-size hydraulic impact hammers are well-designed piling tools, offering powerful performance. The stroke control device allows for adjustable working strokes within a specific range, providing precise and strong impact energy. With their weights ranging from 11000KG to 18000KG, our hammers are compatible with medium-sized piles. Customed hammers are available to meet your specific requirements.
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
Hydraulic Impact Hammer
Large Size (Max. Ram Weight 80000KG)
Our large size hydraulic impact hammers are powerful, expertly designed piling tools. With a robust thick-walled circular hammer shell, the impact hammers offer enhanced strength and self-weight. Made from high-strength alloy steel, these hammers support full-load piling. Weighing between 21000KG and 80000KG, they are compatible with large piles and can be customized to meet your specific needs. Engineered for large-scale projects, these impact hammers are capable of handling large-diameter piles, ensuring solid and stable foundations.
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
Hydraulic Impact Hammer

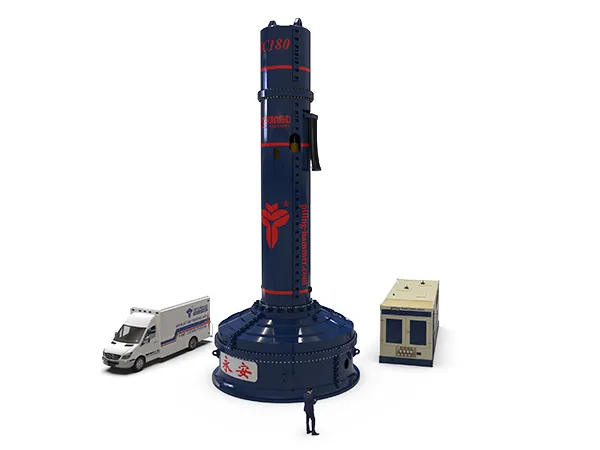

Ultra-large Size (Max. Ram Weight 230000KG)
The ultra large size hydraulic impact hammers are exceptionally designed, ultra-powerful piling tools. They boast superior performance in both impact energy and hydraulic systems. These impact hammers are equipped with a top control device to prevent erroneous operations before reaching the designated position, protecting both the hanging equipment and the hammer. With hammer weights ranging from 110000KG to 220000KG, they can be customized to meet your specific needs. These impact hammers are ideal for handling extremely large-diameter piles, ensuring solid and stable foundations in large-scale projects.
- Civil Infrastructure Construction
- Sea Bridge Construction
