Piling Equipment
As a renowned piling equipment manufacturer, we are dedicated to the design, R&D, and production of optimum piling equipment, including high-performance hydraulic vibro hammers, hydraulic impact hammers, electric vibro hammers, pile upending tools, and hydraulic power packs. Our piling equipment are well-received and widely used in harbour, bridge, offshore wind farms, and underwater construction. For reliable and efficient piling solutions, we are your go-to choice.
Hydraulic Vibro Hammer
Our hydraulic vibro hammer series presents over 30 models, including normal frequency high frequency hydraulic vibro hammers, resonance free variable moment vibratory hammers, hydraulic vibratory hammers with eccentric mass, and tandem vibratory hammers, delivering exceptional performance for any project.
- Eccentric Moment 23-1000 kg.m
- Rated Centrifugal Force 0-12100 kN
- Max. Centrifugal Force 0-51600 kN
- Max. Line Pull Force 0-28800 kN

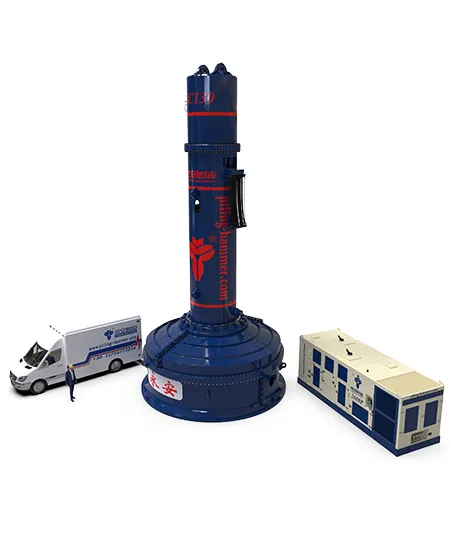

Hydraulic Impact Hammer
Our hydraulic impact hammers offer various models with impact energy ranging from 24kNm to 3740kNm. Our hammers feature a double-layer hydraulic cylinder design and single-cylinder puling for enhanced operational stability. The unique PHC pile cap design effectively protects pile heads during driving.
- Impact Energy 24-3740 kNm
- Working Stroke 1200-1700 mm
- Impact Frequency 18-100 bpm
- Ram Weight 3000-220000 kg
Electric Vibro Hammer
Our electric vibro hammers present a wide range of motor power, from 45kW to 600kW, making them suitable for various construction projects such as housing, factories, subways, highways, docks, airports, power stations, and other infrastructure works.
- Motor Power 45-600 kW
- Eccentric Moment 287-4328 Nm
- Centrifugal Force 380-4370 kN
- Frequency 0-1100 rpm

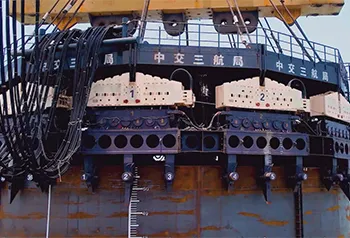

Pile Upending Tool
Introducing our pile upending tools, specifically developed for upending large-diameter steel tubular piles. Designed for offshore wind projects, these tools navigate time-consuming pile upending and the complexity of sea conditions. Based on our hydraulic vibro hammer clamp system, we have innovated these highly sought-after tools for offshore wind applications. Our range includes over 10 models, from FZQ-100 to FZQ-1200, suitable for different pile sizes (diameter: 1-12 m, weight: 100-1200 t).
- Lifting Load 100-1200 ton
- Max. Clamping Force 2400-32000 kN
- Clamp Scope 1-12 m

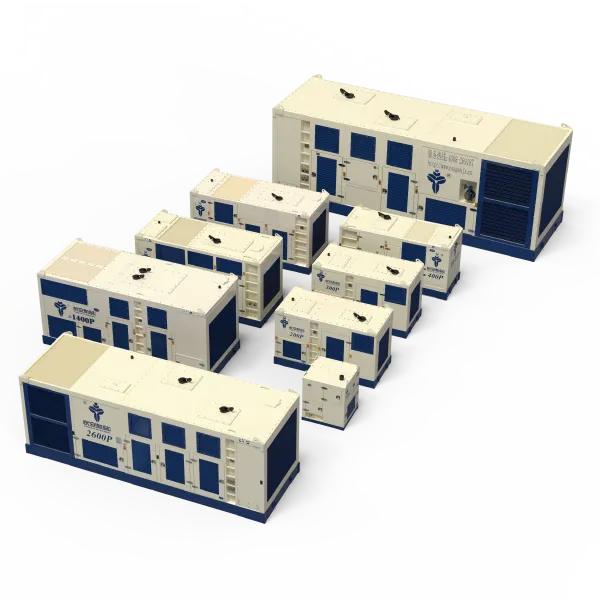

Hydraulic Power Pack
Introducing our hydraulic power packs, designed for all series and models of hydraulic impact hammers, hydraulic vibro hammers, and pile upending tools. Our power packs feature optimized hydraulic systems for efficient operation, ensuring consistent and stable piling performance.
- Max. Power 1939 kW/2599 hp
- Max. Frequency 2200 rpm
- Max. Working Pressure 320 bar
- Hydraulic Oil Flow 3500 L/min
With nearly 40 years of rich industry experience, Yongan Machinery, founded in 1985, stands as a leading manufacturer in the piling hammer industry. We were among the first in China to design and manufacture vibratory hammers and have grown into a billion-yuan enterprise.
Yongan Machinery stands out as an exceptional supplier and R&D professional in the piling equipment industry, boasting nearly 400 patents, including invention, utility model, and design patents. Our patents primarily cover advanced designs in vibro hammers and impact hammers.
