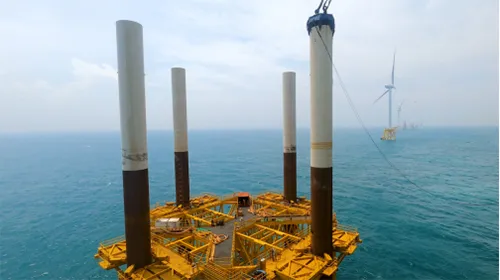

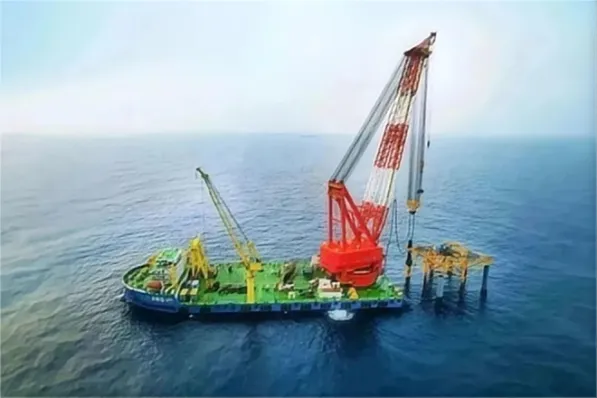

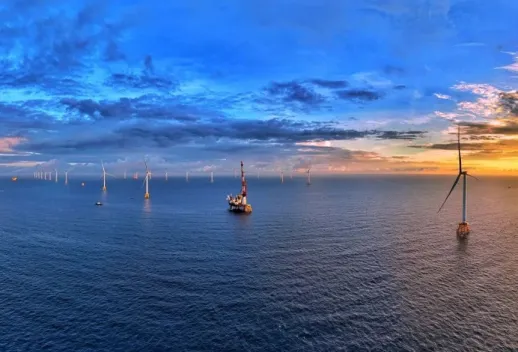

Pile Driving Equipment Solution for

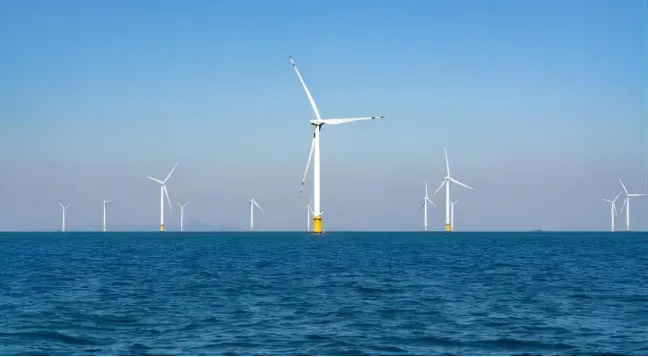

Offshore Wind Farm Construction
-
On land, foundation piles mainly experience axial forces, while in offshore wind projects, monopiles face both axial and radial loads. Vibration piling can slightly reduce radial load capacity. So, a common solution is driving the pile to the final designed depth with a hammer.
Noise issue: excessive noise in marine environments potentially impacts the surrounding ecosystem, especially marine life.
Our vibratory hammers offer high piling efficiency with minimal environmental impact and can correct alignment at any time. They are ideal for projects requiring high precision, particularly in offshore wind farm construction.
| Model | YC-180 |
| Impact Energy | 3060 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 180000 kg |
| Dimensions (L×W×H) | 14400×2765×2765 mm |
| Weight (without pile cap) | 287000 kg |

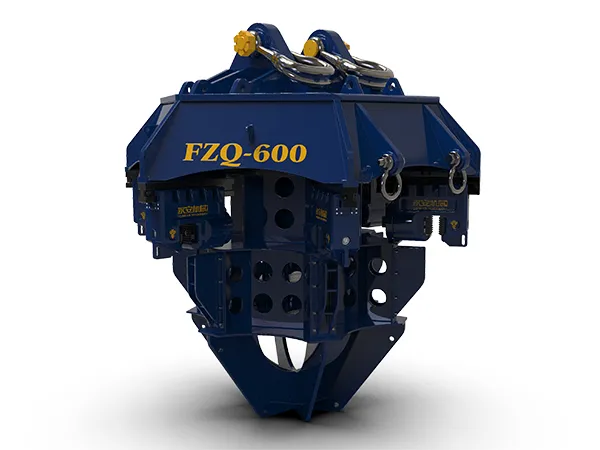

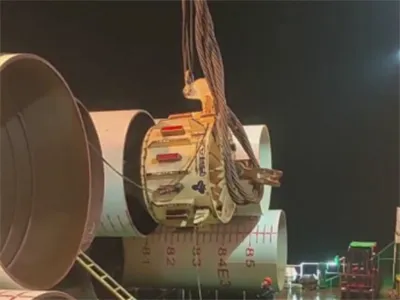

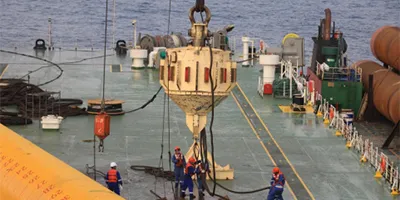

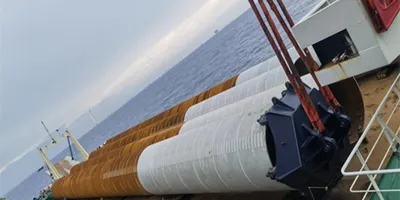

| Model | FZQ-600 |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 14400 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2.5-4 m |
| Dimensions (L×W×H) | 4500×4000×2600 mm |
| Weight | 27000 kg |
| Model | FZQ-600 |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 14400 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2.5-4 m |
| Dimensions (L×W×H) | 4500×4000×2600 mm |
| Weight | 27000 kg |
| Model | FZQ-600 |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 14400 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2.5-4 m |
| Dimensions (L×W×H) | 4500×4000×2600 mm |
| Weight | 27000 kg |

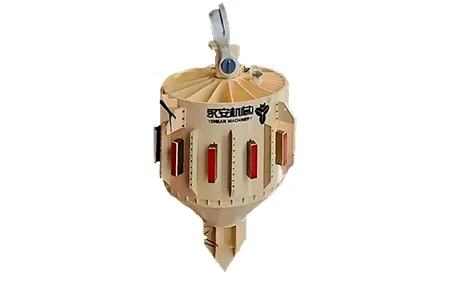

| Model | FZQ-600i |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 12000 kN |
| Maximum Working Pressure | 250 bar |
| Clamp Scope | 2.8-3.3 m |
| Dimensions (L×W×H) | 5000×2650×3580 mm |
| Weight | 26800 kg |
| Model | FZQ-600i |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 12000 kN |
| Maximum Working Pressure | 250 bar |
| Clamp Scope | 2.8-3.3 m |
| Dimensions (L×W×H) | 5000×2650×3580 mm |
| Weight | 26800 kg |
Yongan Machinery, founded in 1985, has nearly 40 years of experience in the manufacturing and R&D of piling products, especially hydraulic vibro hammers, hydraulic impact hammers, electric vibro hammers, and pile upending tools. Our products are widely used in harbour, bridge, underwater, offshore wind farm, and house building construction projects. For example, the Hangzhou Bay Bridge, Hong Kong-Zhuhai-Macau Bridge, Xiamen Jimei Bridge, Nanjing Dashengguan Yangtze River Bridge, and the Shenzhen-Zhongshan Bridge construction.
