FZQ Series
External Lifting Tool
Pile upending and lifting device for handling large diameter piles

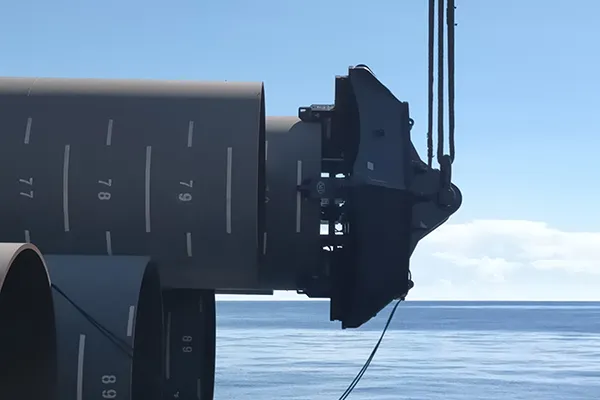

Introducing our external lifting tools (FZQ series), high-efficiency engineering equipment designed for pile handling. Equipped with clamps that securely grip the walls of tubular piles, these tools can lift piles once the control panel indicates a tight grip. With their maximum lifting loads ranging from 100 t to 1200 t, these hydraulic-powered tools ensure precise and stable operation, enhancing safety during the upending process. Customization is available to meet your specific needs.

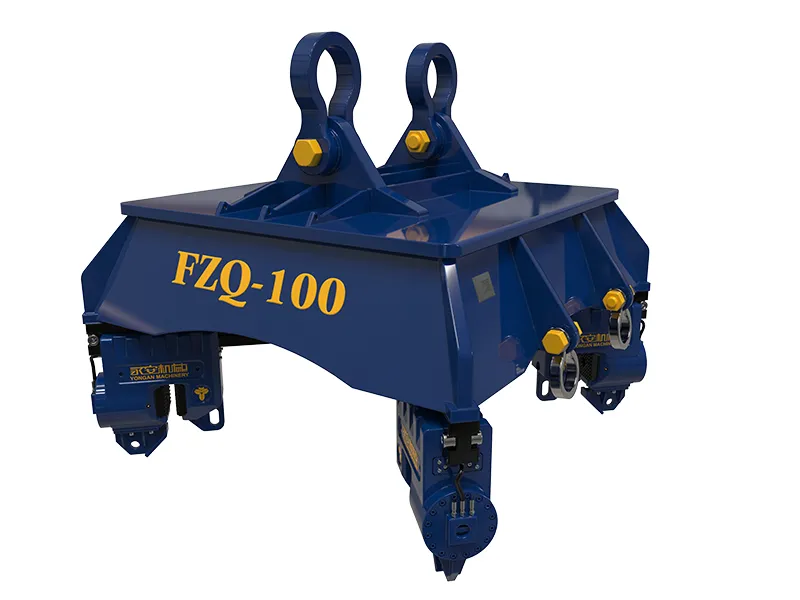

| Model | FZQ-100 |
| Maximum Lifting Load | 100 ton |
| Maximum Clamping Force | 2400 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 1-2 m |
| Dimensions (L×W×H) | 2000×2000×2400 mm |
| Weight | 8 ton |

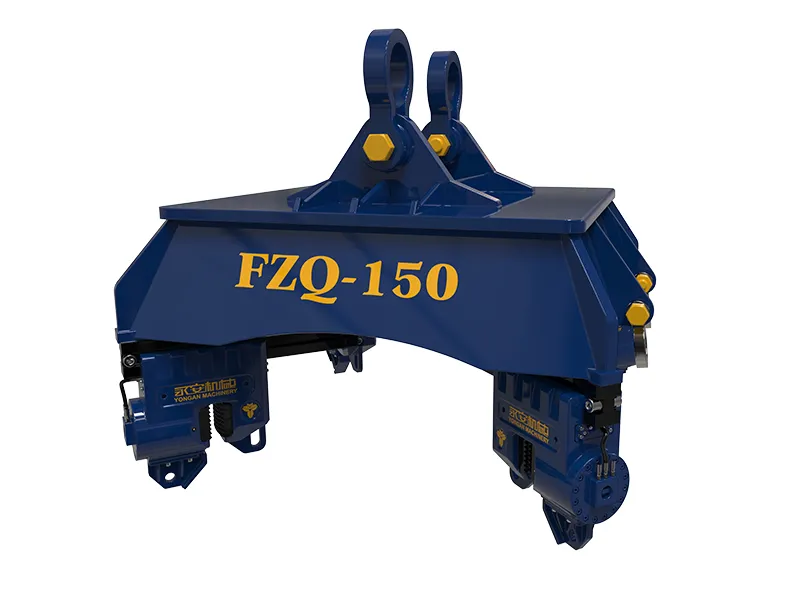

| Model | FZQ-150 |
| Maximum Lifting Load | 150 ton |
| Maximum Clamping Force | 3600 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 1.5-2.5 m |
| Dimensions (L×W×H) | 2380×2380×2570 mm |
| Weight | 10 ton |

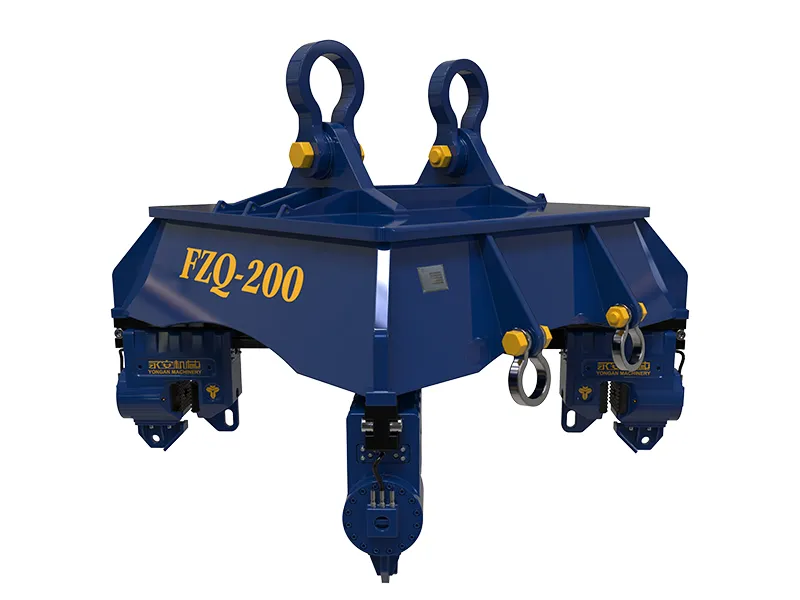

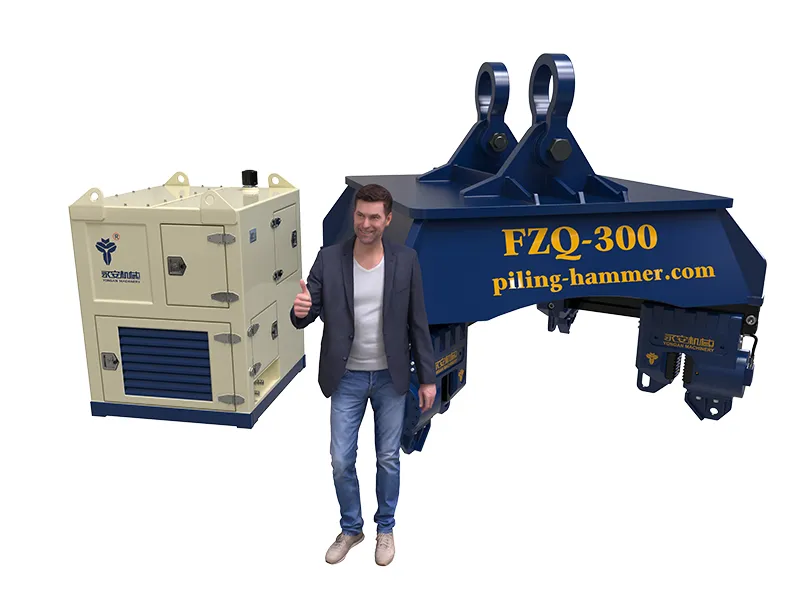

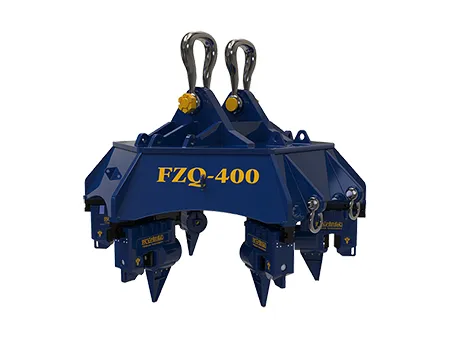

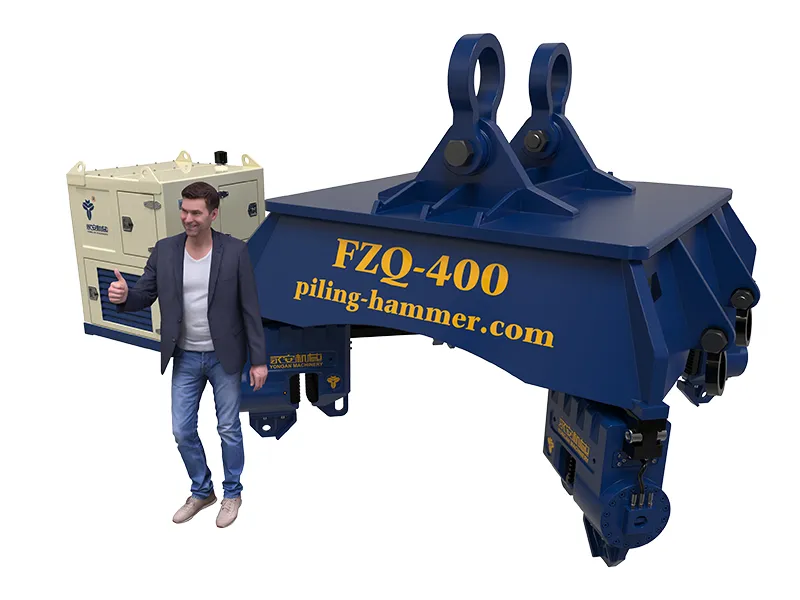

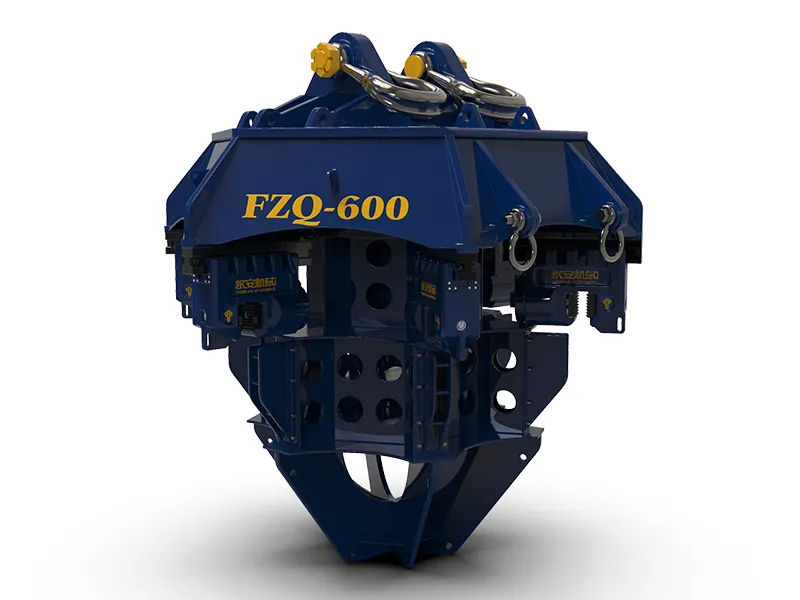

| Model | FZQ-200 |
| Maximum Lifting Load | 200 ton |
| Maximum Clamping Force | 4800 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 1.8-3.5 m |
| Dimensions (L×W×H) | 2850×2850×2570 mm |
| Weight | 13 ton |
| Model | FZQ-300 |
| Maximum Lifting Load | 300 ton |
| Maximum Clamping Force | 9600 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2-3.5 m |
| Dimensions (L×W×H) | 3150×3020×2570 mm |
| Weight | 16 ton |
| Model | FZQ-400 |
| Maximum Lifting Load | 400 ton |
| Maximum Clamping Force | 9600 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2.5-3.5 m |
| Dimensions (L×W×H) | 3180×3180×2600 mm |
| Weight | 25 ton |
| Model | FZQ-600 |
| Maximum Lifting Load | 600 ton |
| Maximum Clamping Force | 14400 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 2.5-4 m |
| Dimensions (L×W×H) | 4500×4000×2600 mm |
| Weight | 27 ton |

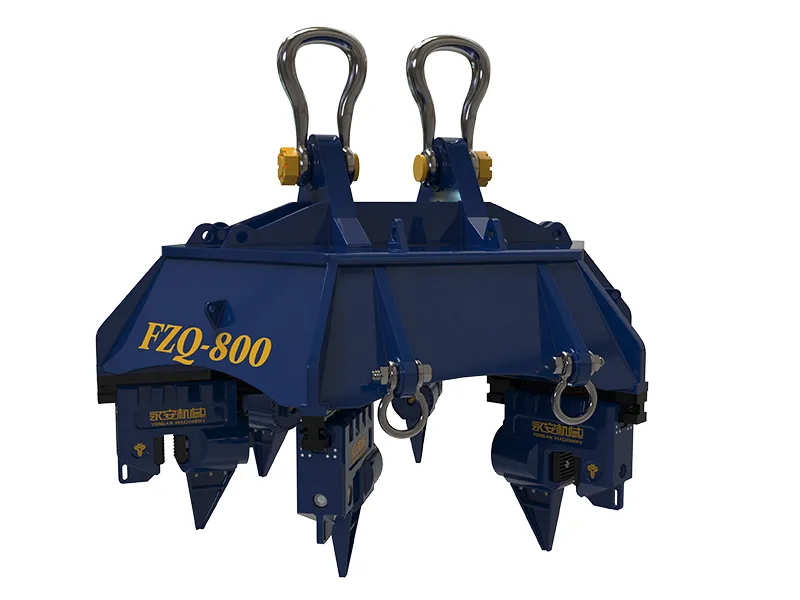

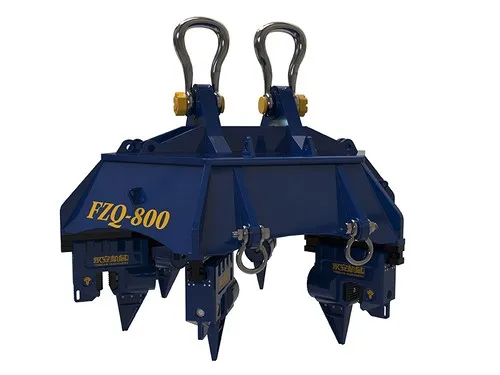

| Model | FZQ-800 |
| Maximum Lifting Load | 800 ton |
| Maximum Clamping Force | 19200 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 3-6 m |
| Dimensions (L×W×H) | 9200×8300×3400 mm |
| Weight | 42 ton |

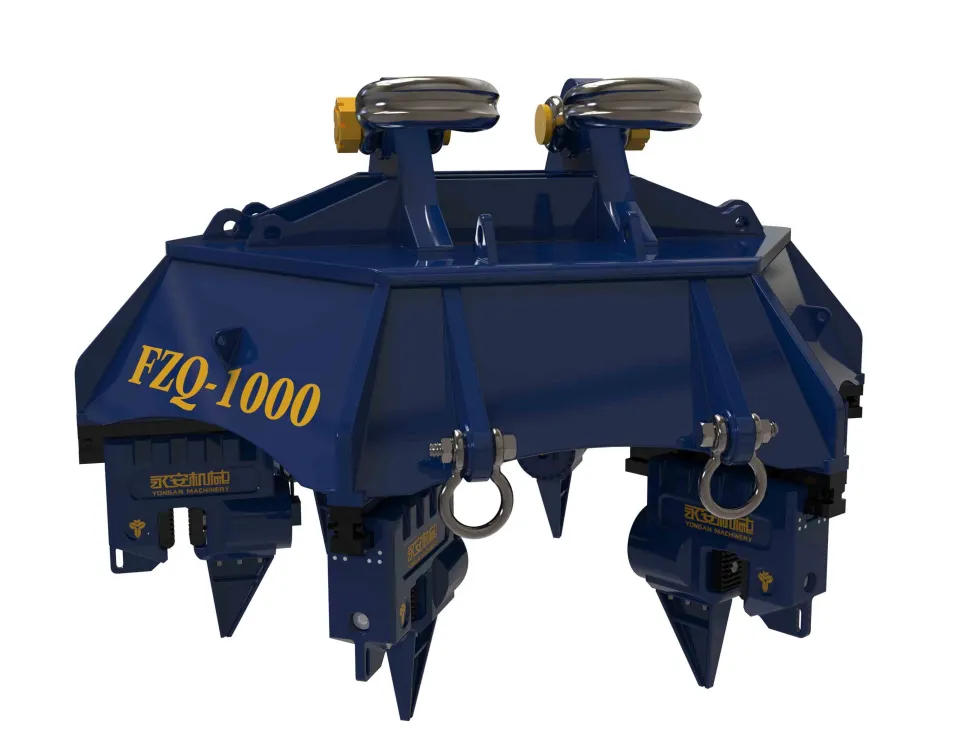

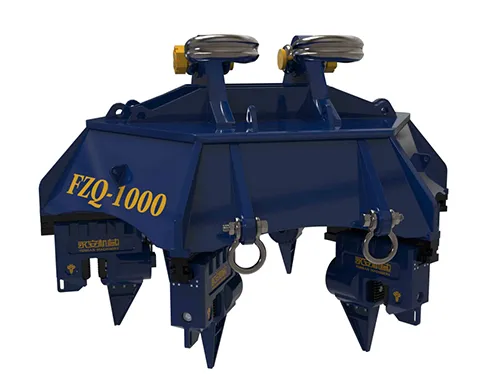

| Model | FZQ-1000 |
| Maximum Lifting Load | 1000 ton |
| Maximum Clamping Force | 25600 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 3-10 m |
| Dimensions (L×W×H) | 12400×11500×3500 mm |
| Weight | 75 ton |

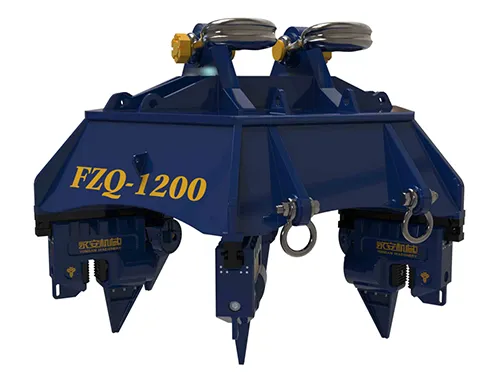

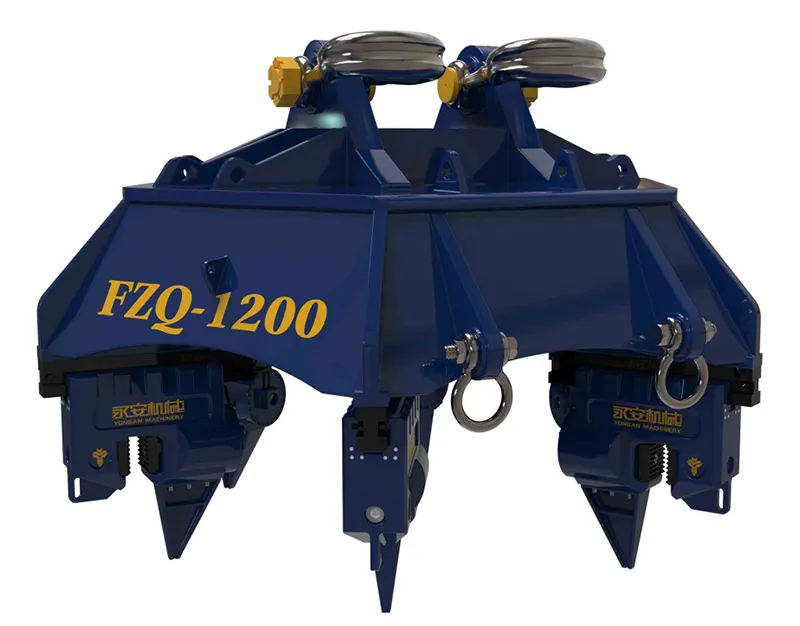

| Model | FZQ-1200 |
| Maximum Lifting Load | 1200 ton |
| Maximum Clamping Force | 32000 kN |
| Maximum Working Pressure | 280 bar |
| Clamp Scope | 3-12 m |
| Dimensions (L×W×H) | 14500×13100×4000 mm |
| Weight | 100 ton |
Applications
- Civil Infrastructure Construction
- Offshore Wind Farm Construction
Suitable Pile Types
- Steel Tubular Piles
- Concrete Piles
Related Case Studies
Construction Projects using FZQ-200 Pile Upending Tool
Yuedian's Offshore Wind Power Project in Yangjiang, Guangdong
- Diameter: 3.5 m
- Thickness: 50 mm
- Weight: 160 t
Construction Projects using FZQ-300 Pile Upending Tool
Offshore Wind Power project in Pingtan
- Diameter: 2 m
- Thickness: 28 mm
- Pile length: 65 m
- Weight: 100 t
Construction Projects using FZQ-600 Pile Upending Tool
Yuedian’s Offshore Wind Power Project in Yangjiang, Guangdong
- Diameter: 3.2 m
- Thickness: 55 mm
- Weight: 300-420 t
HXOES Offshore Wind Power Project in Jiangsu
- Diameter: 2.8 m
- Thickness: 50 mm
- Weight: 400 t
Thermal Power Project in Qingzhou Town, Guangdong
- Diameter: 2.8 m
- Pile length: 88 m
- Thickness: 50 mm
- Weight: 237 t
Offshore Wind Power Project in Yangjiang
- Diameter: 3.5 m
- Thickness: 55 mm
- Pile length: 60 m
- Weight 252 t
Changle Offshore Wind Farm A Zone Construction in Fujian
- Diameter: 3.2 m
- Thickness: 55 mm
- Weight: 300-420 t
- Application: offshore wind farm
