- Motor Power: 45-600 kW
- Eccentric Moment: 287-4328 Nm
- Centrifugal Force: 380-4370 kN
- Frequency: 0-1100 rpm
- Max. Amplitude: 0-16.5 mm
- Max. Line Pull: 180-1352 kN
- Generator Capacity: 150-800 kW
- Crane Capacity: 25-200 ton
Our electric vibro hammers present a wide range of motor power, from 45kW to 600kW, making them suitable for various construction projects such as housing, factories, subways, highways, docks, airports, power stations, and other infrastructure works. They are designed to suit bored concrete piles, lime piles, sand piles, and gravel piles. Equipped with hydraulic clamps, they are also capable of driving and extracting steel tubular piles, sheet piles, H-beams, and precast cement piles.
Electric Vibratory Hammer

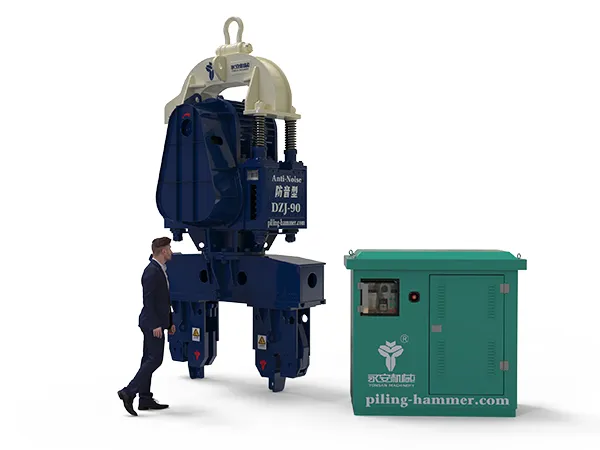

Small Size (Max. Motor Power 90KW)
Our small size electric vibratory hammers are portable and efficient engineering tools. They are powered by electricity and fuel-free, with motor power ranging from 45KW to 90KW. Our hammers are equipped with pile clamps are made from ultra-high-strength special alloy steel, with options for flat or curved jaws to accommodate different pile types. Hammer customization is available to meet your specific needs or make them ideal for limited spaces and headroom. Featuring vibration functionality, they are perfect for driving and extracting small piles to enhance soil density and load-bearing capacity.
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
- Solar Power Plant Construction
Electric Vibratory Hammer

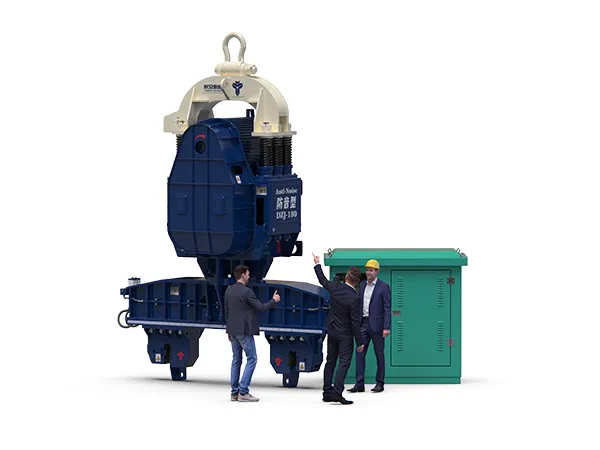

Medium Size (Max. Motor Power 180KW)
Our medium size electric vibratory hammers are expertly designed, high-performance, and portable vibro equipment, with motor power ranging from 120 kW to 180 kW. These electric hammers provide robust vibration capabilities and feature a shock absorption system made from high-quality alloy spring steel that is highly durable and elastic. The combination of the spring steel and a eccentric block generates powerful extraction force. In addition, hammer customization options are available to meet your specific requirements.
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
- Solar Power Plant Construction
Electric Vibratory Hammer

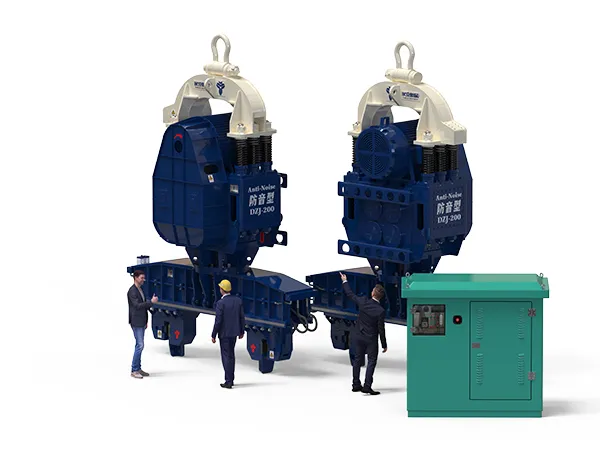

Large Size (Max. Motor Power 600KW)
Our large size electric vibratory hammers are high-performance engineering tools powered by electricity, making them eco-friendly and efficient. They feature FAG X-life series spherical roller bearings that are specifically designed for vibratory hammers, ensuring over five times the lifespan of standard hammers. With motor power ranging from 200KW to 600KW, they are ideal for driving and extracting large piles to enhance soil density and load-bearing capacity. Customization is available to meet your specific requirements.
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
