Our medium size electric vibratory hammers are expertly designed, high-performance, and portable vibro equipment, with motor power ranging from 120 kW to 180 kW. These electric hammers provide robust vibration capabilities and feature a shock absorption system made from high-quality alloy spring steel that is highly durable and elastic. The combination of the spring steel and a eccentric block generates powerful extraction force. In addition, hammer customization options are available to meet your specific requirements.
Request a Quote
Customizable Options
Customized options for hydraulic clamps are available
Request a Quote

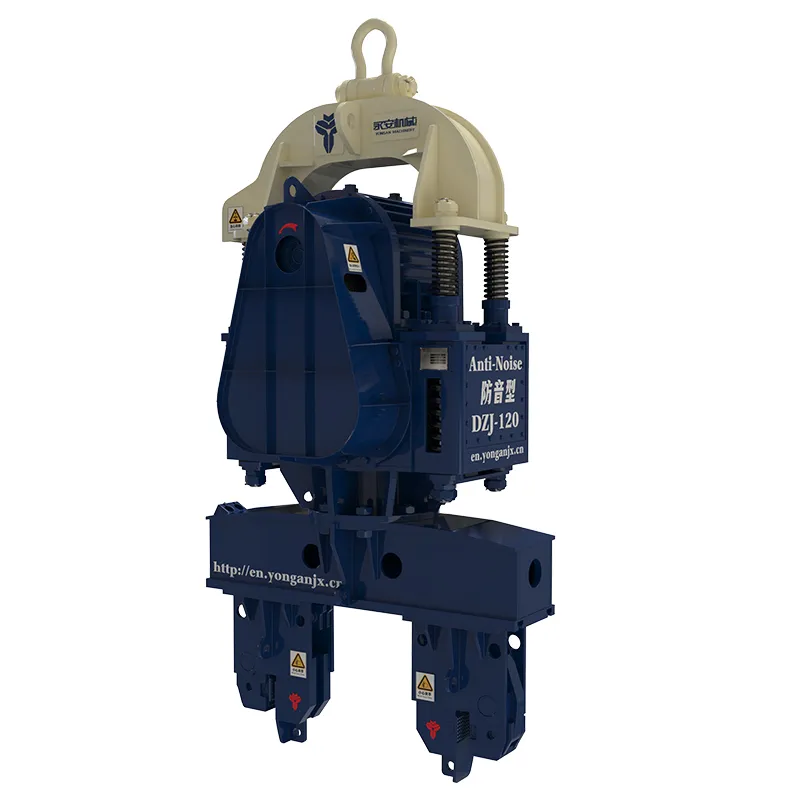

Model
DZJ-120
Motor Power (kW)
120
Eccentric Moment (Nm)
750
Centrifugal Force (kN)
0-823
Frequency (rpm)
0-1000
Maximum Amplitude (mm)
12
Maximum Line Pull (kN)
392
Dimensions (L×W×H) (mm)
1850×1350×2500
Weight (without clamp) (kg)
7000
Cable (mm²)
70
Clamp Scope (mm)
600-2000
Generator Capacity (kW)
300
Minimum Crane Capacity (ton)
70
Request a Quote

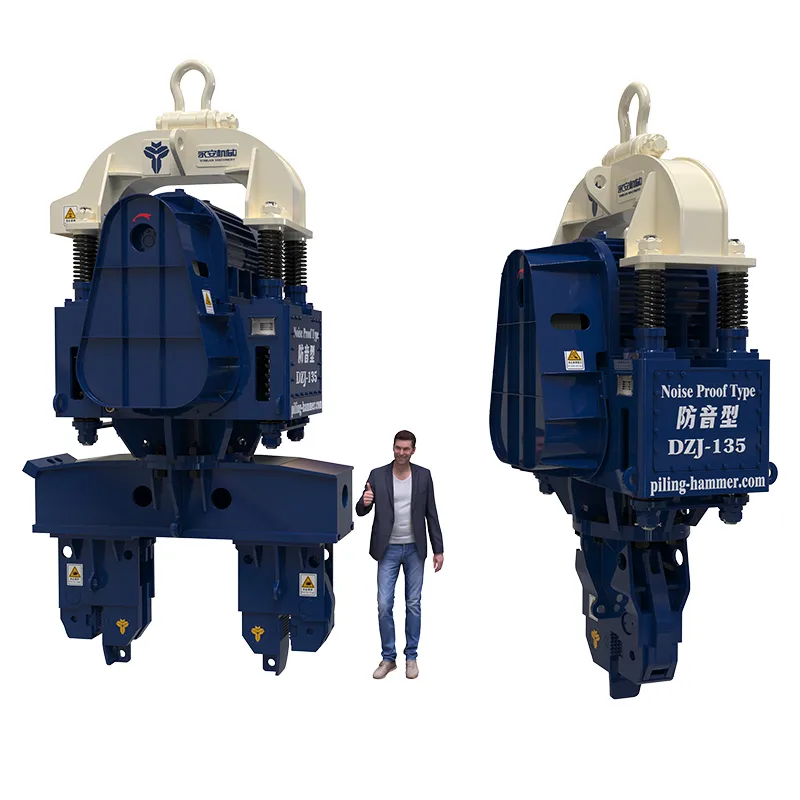

Model
DZJ-135
Motor Power (kW)
135
Eccentric Moment (Nm)
806
Centrifugal Force (kN)
0-883
Frequency (rpm)
0-1000
Maximum Amplitude (mm)
13
Maximum Line Pull (kN)
420
Dimensions (L×W×H) (mm)
1900×1450×2520
Weight (without clamp) (kg)
7200
Cable (mm²)
70
Clamp Scope (mm)
600-2000
Generator Capacity (kW)
300
Minimum Crane Capacity (ton)
70
Request a Quote

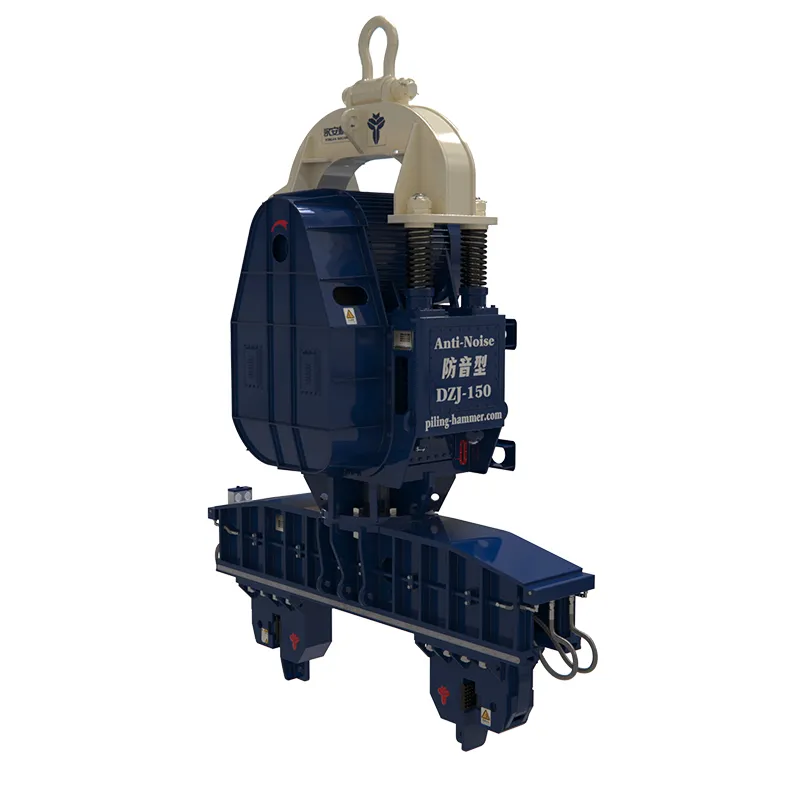

Model
DZJ-150
Motor Power (kW)
150
Eccentric Moment (Nm)
1120
Centrifugal Force (kN)
0-1140
Frequency (rpm)
0-960
Maximum Amplitude (mm)
15
Maximum Line Pull (kN)
450
Dimensions (L×W×H) (mm)
1950×1530×3225
Weight (without clamp) (kg)
8700
Cable (mm²)
95
Clamp Scope (mm)
600-2500
Generator Capacity (kW)
350
Minimum Crane Capacity (ton)
80
Request a Quote

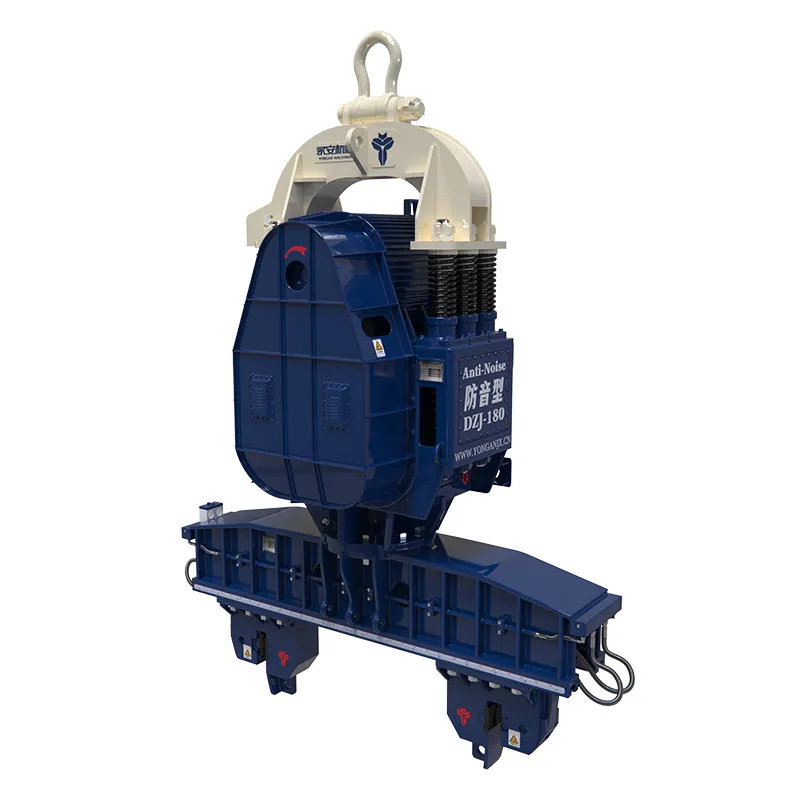

Model
DZJ-180
Motor Power (kW)
180
Eccentric Moment (Nm)
1240
Centrifugal Force (kN)
0-1390
Frequency (rpm)
0-1000
Maximum Amplitude (mm)
12.7
Maximum Line Pull (kN)
530
Dimensions (L×W×H) (mm)
2100×1650×3050
Weight (without clamp) (kg)
11000
Cable (mm²)
95
Clamp Scope (mm)
600-2500
Generator Capacity (kW)
400
Minimum Crane Capacity (ton)
100
Mounting Options

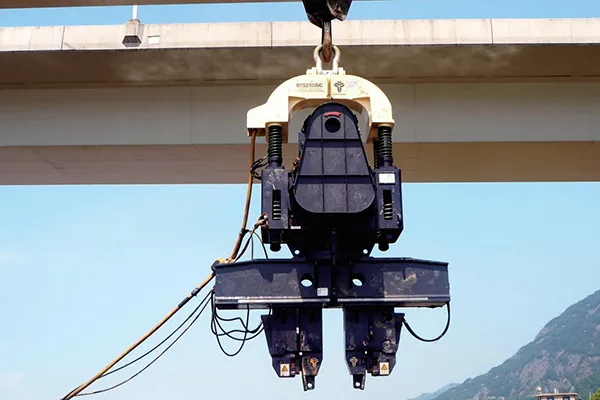

Operated by suspending the electric vibratory hammer using cranes for construction.
Crawler Crane
Floating Crane
Crawler Rig Lead Supported
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
