Pile Driving Equipment Solution for
Oil Platform Construction
-

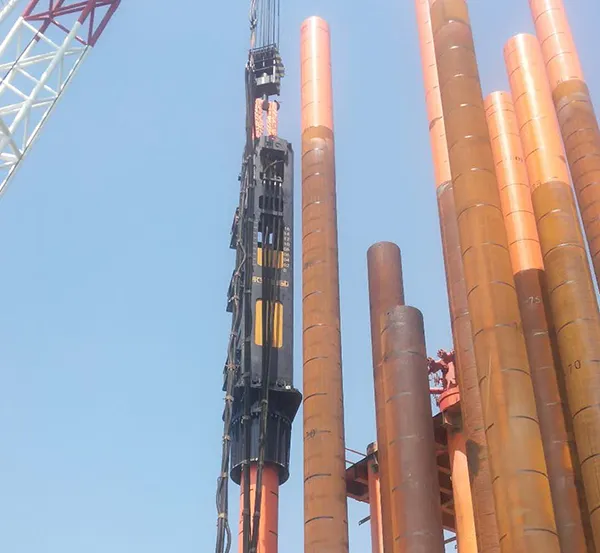

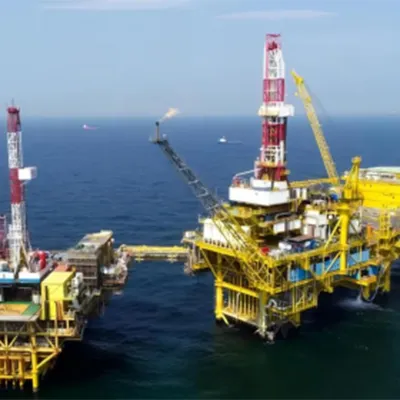

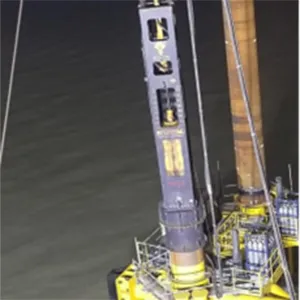

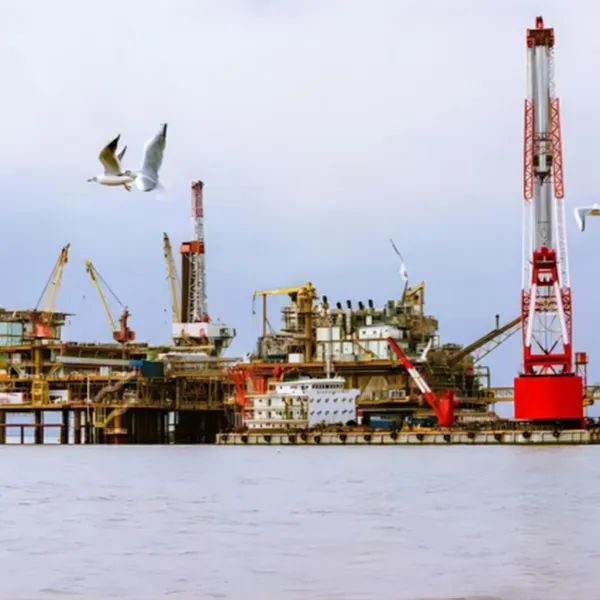

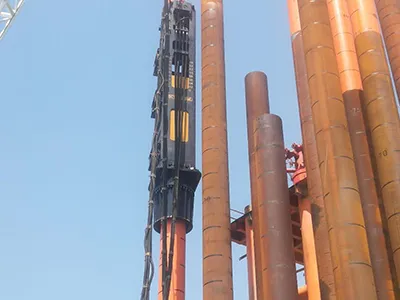

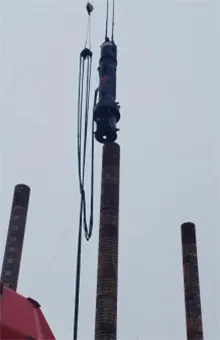

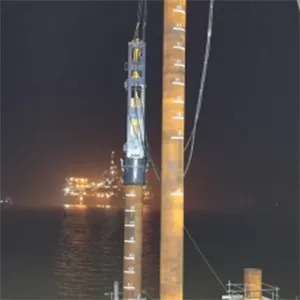

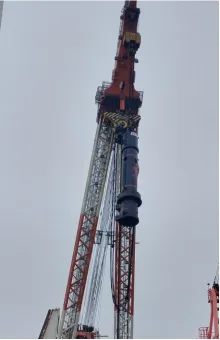

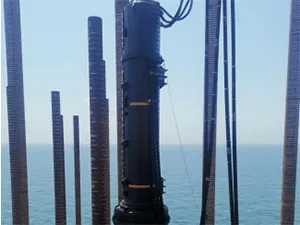

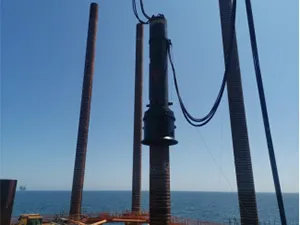

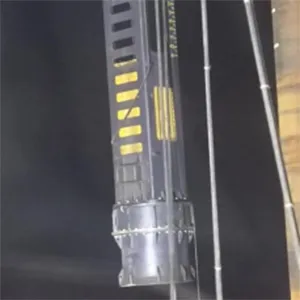

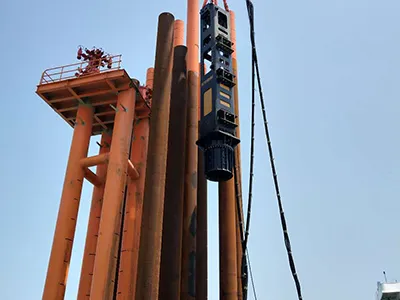

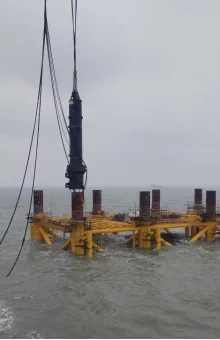

We have developed several vibratory hammers specifically for offshore oil platform construction, suitable for various conditions and soil types. Oil platforms facilitate safer and more efficient energy extraction, requiring a solid and stable foundation. Our hammers ensure the creation of safe and durable offshore oil platforms.
| Model | YC-130 |
| Impact Energy | 2210 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 130000 kg |
| Dimensions (L×W×H) | 12550×3260×2845 mm |
| Weight (without pile cap) | 195000 kg |
| Model | YC-120 |
| Impact Energy | 2040 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 60/22 bpm |
| Ram Weight | 120000 kg |
| Dimensions (L×W×H) | 12410×3200×2500 mm |
| Weight (without pile cap) | 177200 kg |
| Model | YC-21 |
| Impact Energy | 315 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 21000 kg |
| Dimensions (L×W×H) | 7500×1350×1580 mm |
| Weight (without pile cap) | 31500 kg |
| Model | YC-25 |
| Impact Energy | 425 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 65/25 bpm |
| Ram Weight | 25000 kg |
| Dimensions (L×W×H) | 8380×1460×1750 mm |
| Weight (without pile cap) | 36000 kg |
| Model | YC-50 |
| Impact Energy | 850 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 60/25 bpm |
| Ram Weight | 50000 kg |
| Dimensions (L×W×H) | 10100×2010×2180 mm |
| Weight (without pile cap) | 70000 kg |
Yongan Machinery, founded in 1985, has nearly 40 years of experience in the manufacturing and R&D of piling products, especially hydraulic vibro hammers, hydraulic impact hammers, electric vibro hammers, and pile upending tools. Our products are widely used in harbour, bridge, underwater, offshore wind farm, and house building construction projects. For example, the Hangzhou Bay Bridge, Hong Kong-Zhuhai-Macau Bridge, Xiamen Jimei Bridge, Nanjing Dashengguan Yangtze River Bridge, and the Shenzhen-Zhongshan Bridge construction.
