YC-3/YC-4/YC-5/YC-8/YC-9/Y-10

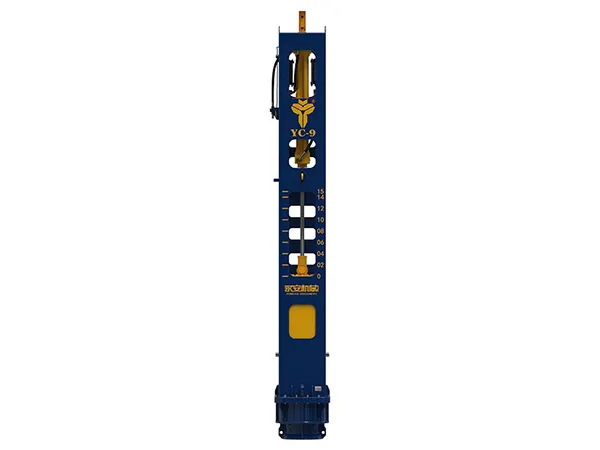

Hydraulic Impact Hammer
Piling hammer
Our small size hydraulic impact hammers are perfect for limited spaces or headroom, with hammer weights ranging from 3000 kg to 10000 kg, delivering strong impact energy for piling. Customization is available to meet your specific requirements. This equipment uses the Trelleborg sealing solutions for superior cylinder sealing, ensuring stable performance.

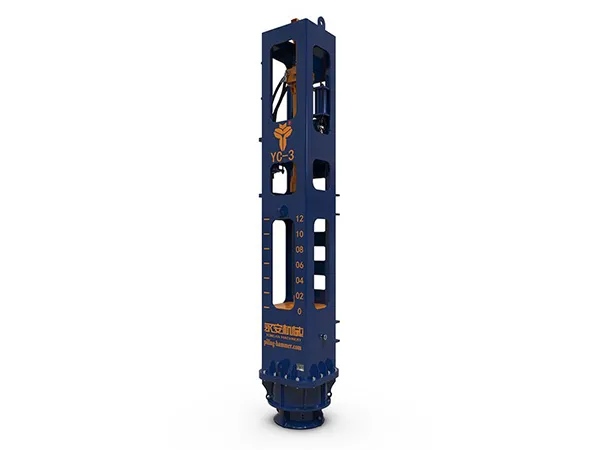

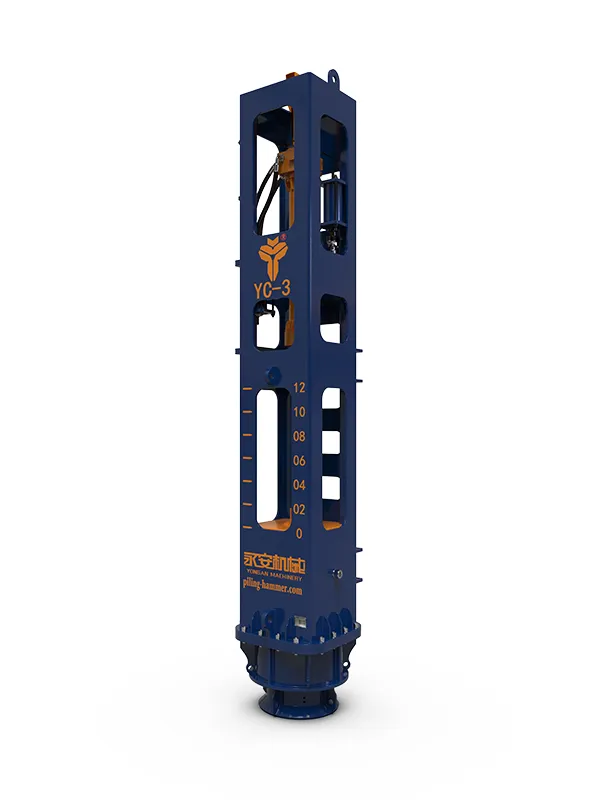

| Model | YC-3 |
| Unit | Metric |
| Impact Energy | 36 kNm |
| Working Stroke | 1200 mm |
| Impact Frequency | 80/35 bpm |
| Ram Weight | 3000 kg |
| Dimensions (L×W×H) | 4845×960×1075 mm |
| Weight | 5800 kg |
| Recommended Power Pack | 200P |

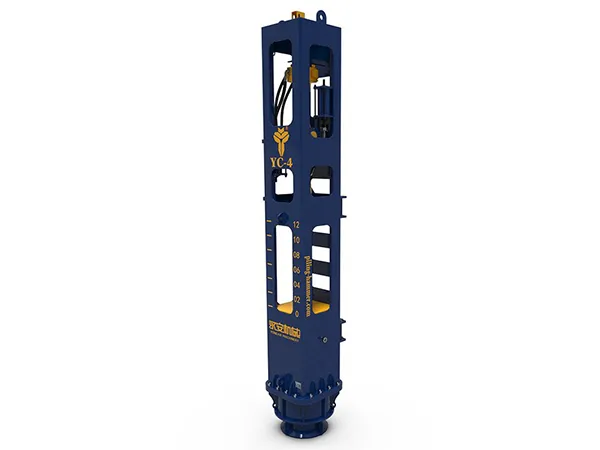

| Model | YC-4 |
| Unit | Metric |
| Impact Energy | 48 kNm |
| Working Stroke | 1200 mm |
| Impact Frequency | 100/40 bpm |
| Ram Weight | 4000 kg |
| Dimensions (L×W×H) | 4285×900×1060 mm |
| Weight | 8500 kg |
| Recommended Power Pack | 200P |

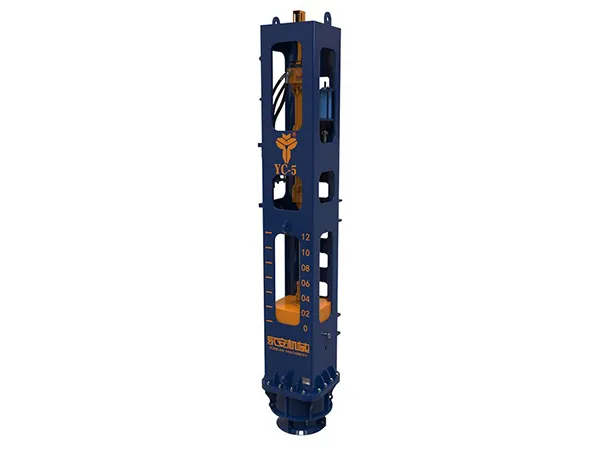

| Model | YC-5 |
| Unit | Metric |
| Impact Energy | 60 kNm |
| Working Stroke | 1200 mm |
| Impact Frequency | 80/35 bpm |
| Ram Weight | 5000 kg |
| Dimensions (L×W×H) | 5425×960×1075 mm |
| Weight | 8500 kg |
| Recommended Power Pack | 200P |

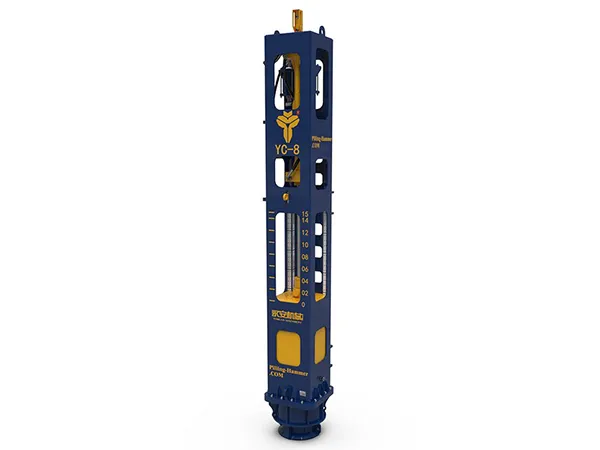

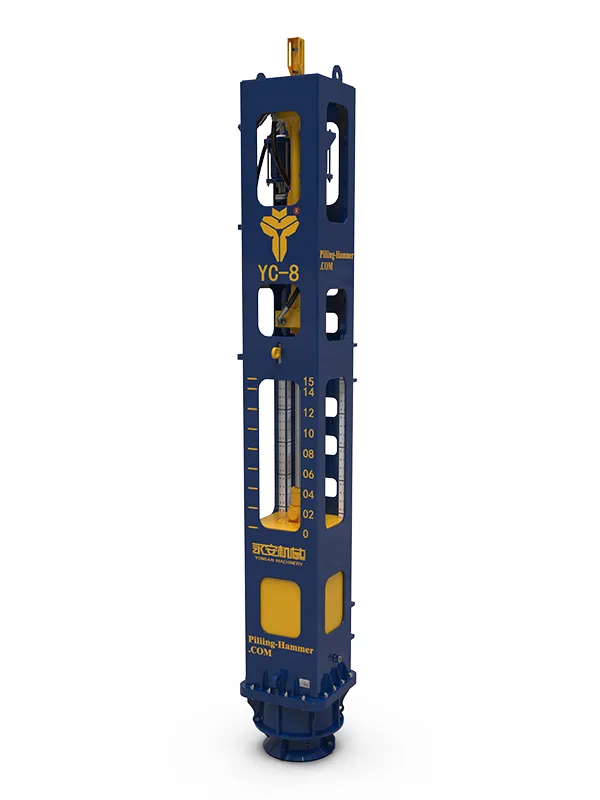

| Model | YC-8 |
| Unit | Metric |
| Impact Energy | 120 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 8000 kg |
| Dimensions (L×W×H) | 6800×1075×1185 mm |
| Weight | 12500 kg |
| Recommended Power Pack | 300P |
| Model | YC-9 |
| Unit | Metric |
| Impact Energy | 135 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 100/30 bpm |
| Ram Weight | 9000 kg |
| Dimensions (L×W×H) | 6350×976×1190 mm |
| Weight | 13200 kg |
| Recommended Power Pack | 300P |

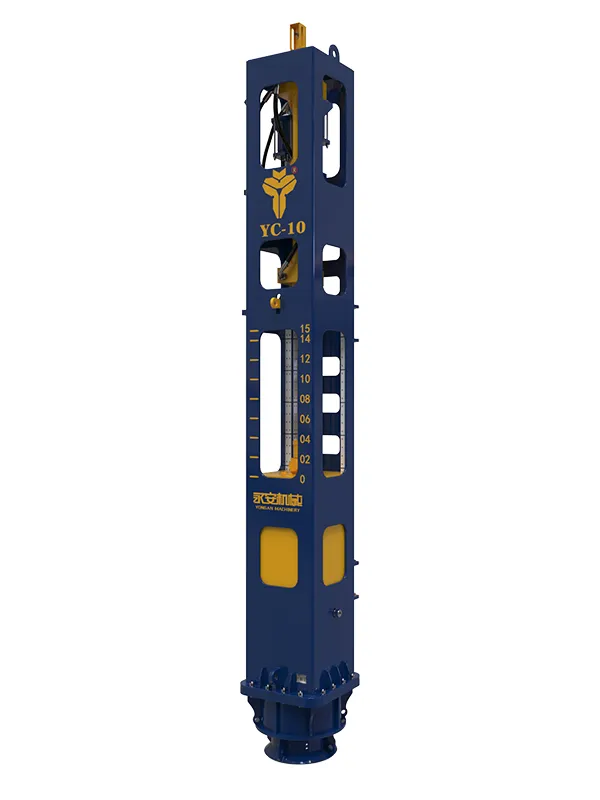

| Model | Y-10 |
| Unit | Metric |
| Impact Energy | 150 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 100/30 bpm |
| Ram Weight | 10000 kg |
| Dimensions (L×W×H) | 6580×976×1190 mm |
| Weight | 14600 kg |
| Recommended Power Pack | 300P |
Mounting Options

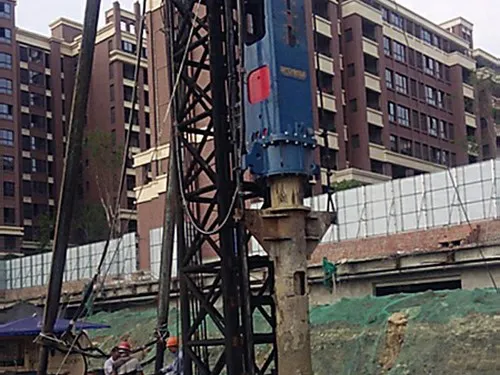

- Operated with cranes: impact hammers are suspended by with cranes for piling.
- Installed on a guide frame for precise operation.
- Mounted on the lead system of an excavator for flexible and efficient piling.
Crawler Crane

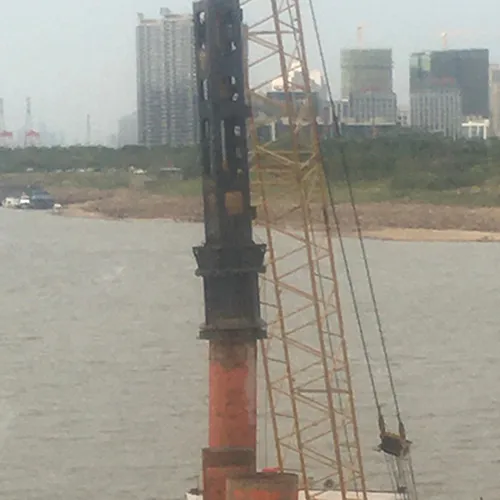

Floating Crane
Crawler Rig Lead Supported
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
Suitable Pile Types
- Steel Tubular Piles
- Sheet Piles
- Concrete piles
Parts & Projects
-
Qualified Ram
-
Customized Pile Cap
-
Customized Pile Cap
-
Customized Pile Cap
-
Electric Remote Control System
-
Durable Buffer Parts
-
Double-Layer Hydraulic Cylinder Design
-
Various Installament Methods
-
Various Installament Methods
-
Various Installament Methods
-
Seawater Cooling System
-
Efficient Energy Teansfer & Plie Driving Efficiency
Related Case Studies

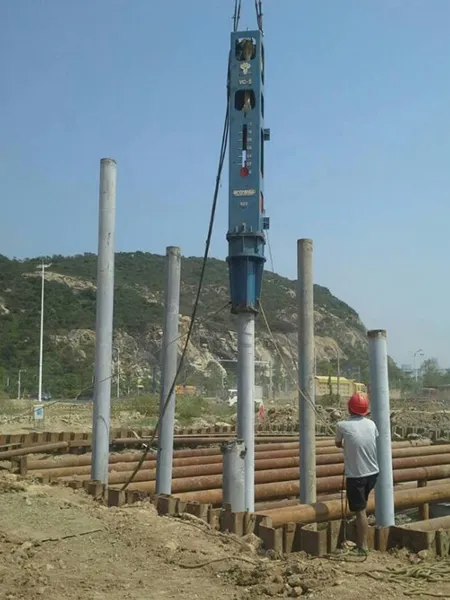

Construction Projects using YC-5 Hydraulic Impact Hammer

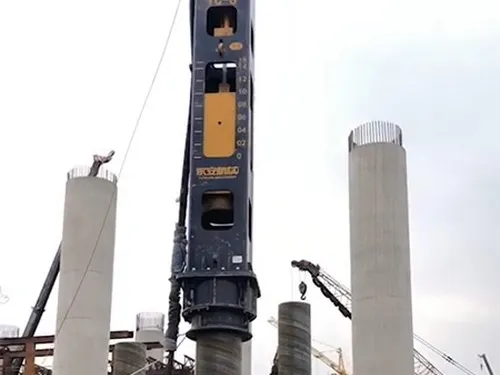

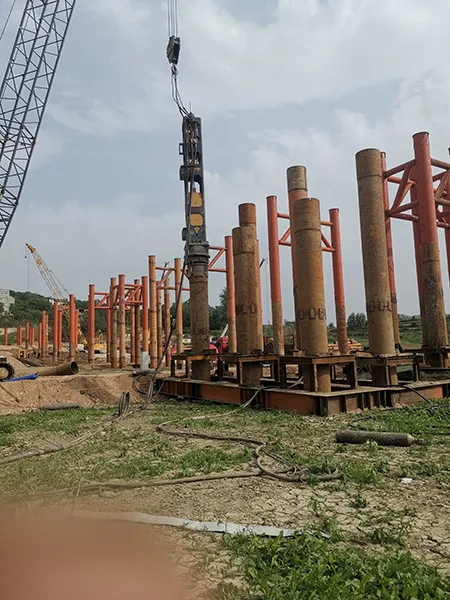

Hongzhou Bridge Construction in Nanchang City
- Project time: September, 2022
- Pile type: tubular piles
- Diameter: 830 mm
- Thickness: 12 mm
- Pile length: 36 m (driving depth: 6 m)
- Application: trestle bridge piles
- Soil type: mud and clay
- Pile driving time: 5-10 min
Qingdao Jiaodong International Airport Construction
- Pile type: tubular piles
- Diameter: 529 mm
- Pile length: 25 m
- Application: port cofferdam
- Soil type: silt clay

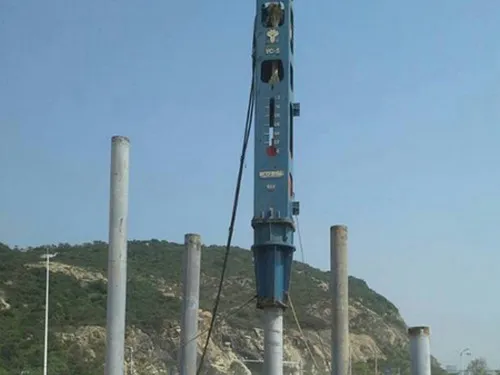

Construction in Zhongjiang County, Deyang, Sichuan

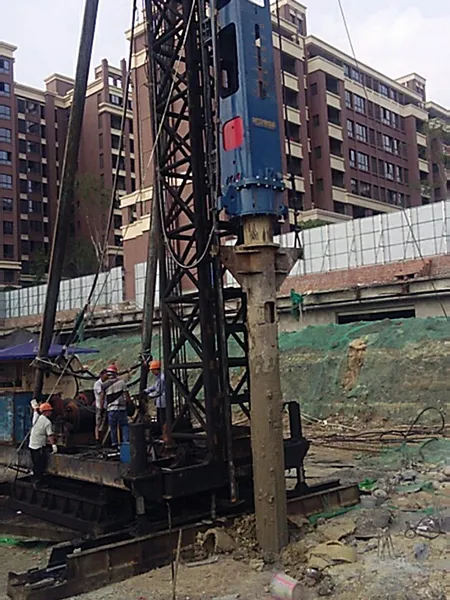

- Pile type: cast-in-place concrete piles
Construdtion in Hengqin, Zhuhai
- Pile type: concrete piles (diameter: 400 mm)
- Driving depth: 18 m
- Soil type: mud and silt clay

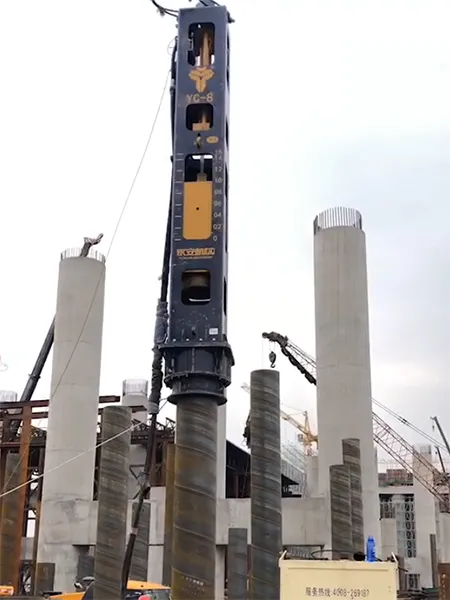

Construction Projects using YC-8 Hydraulic Impact Hammer
Polytech Construction in Macau

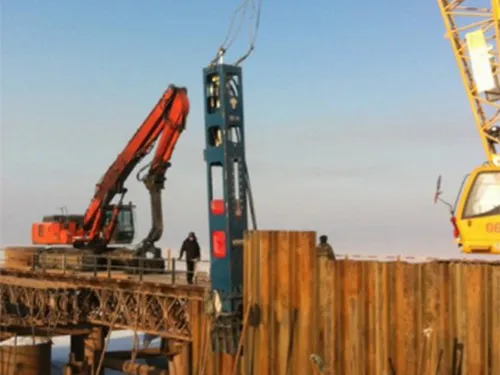

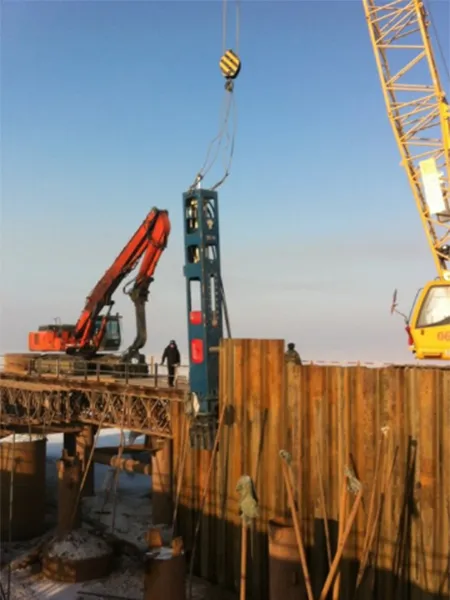

- Pile type: Larssen steel sheet piles
- Thickness: 60 mm
- Driving depth: 26 m
- Soil type: sand and cobblestones
Expressway Construction in Yunyang District

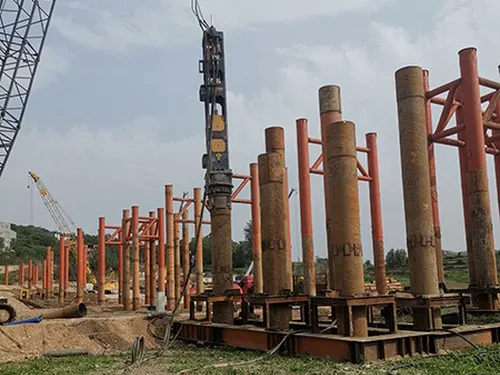

- Pile type: tubular piles
- Diameter: 800 mm
- Pile length: 30 m (driving depth: 15-25 m)
- Application: trestle bridge platform
- Soil type: mudstone
