YC-11/YC-12/YC-14/YC-15/YC-16/Y-17/YC-18
Hydraulic Impact Hammer
Piling hammer
Our medium-size hydraulic impact hammers are well-designed piling tools, offering powerful performance. The stroke control device allows for adjustable working strokes within a specific range, providing precise and strong impact energy. With their weights ranging from 11000KG to 18000KG, our hammers are compatible with medium-sized piles. Customed hammers are available to meet your specific requirements.
Customizable Options
Sized of pile caps are customizable. Installation of rear clamps is optional.

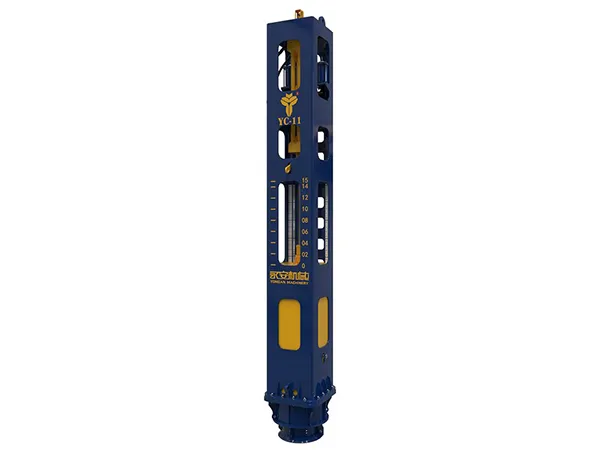

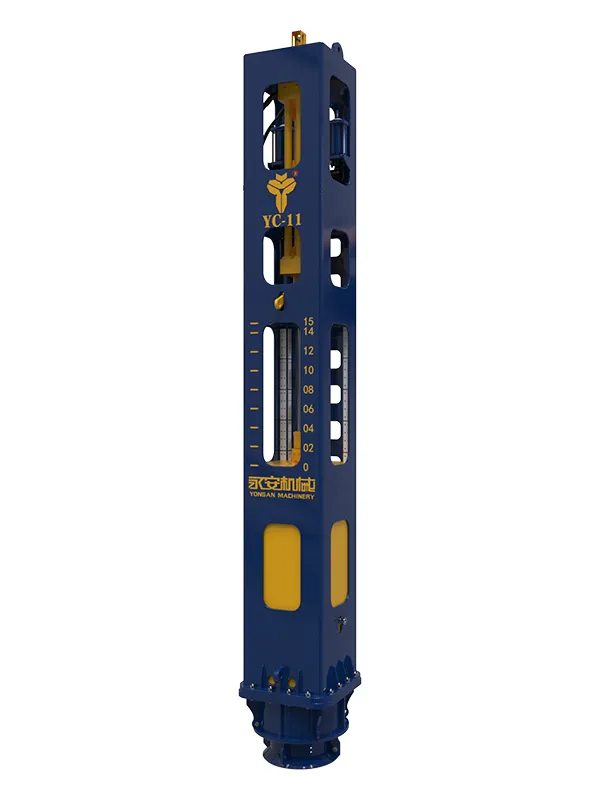

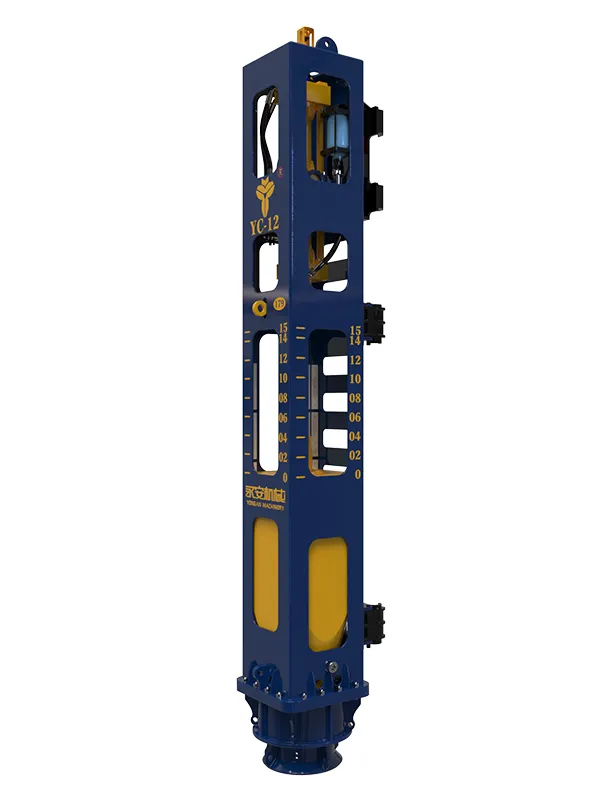

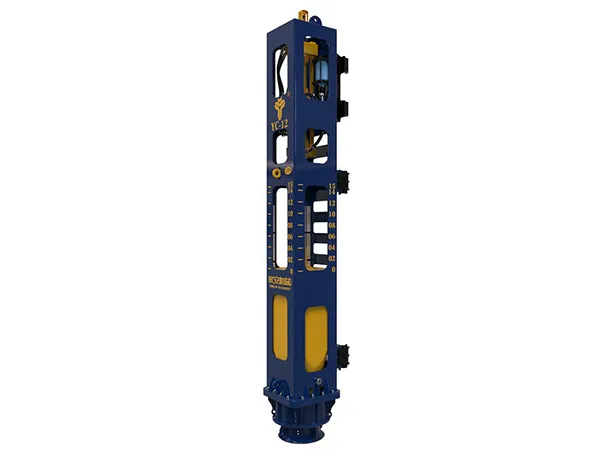

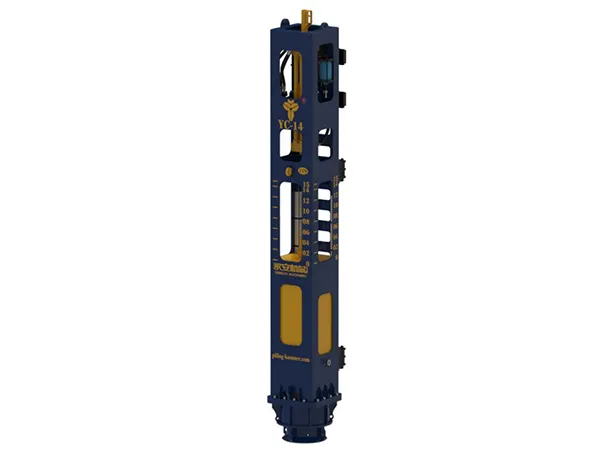

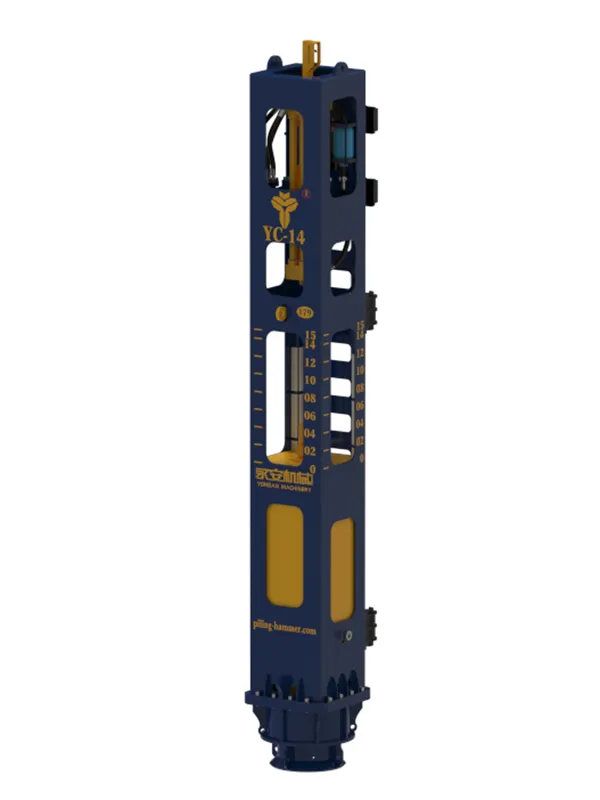

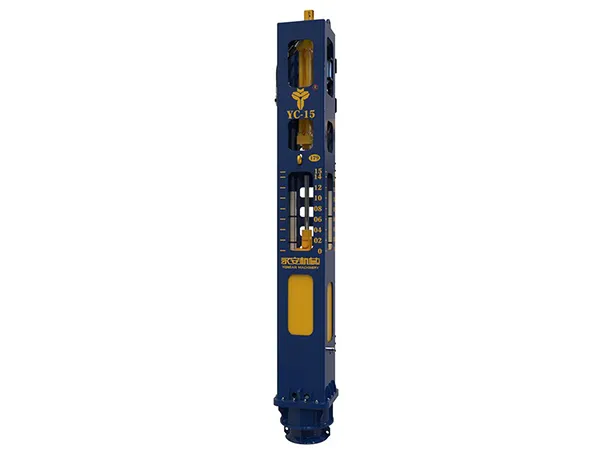

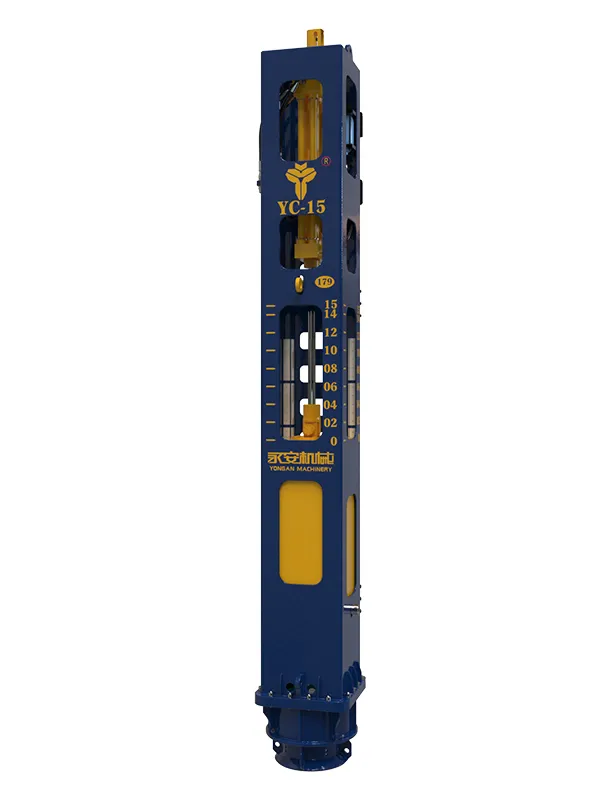

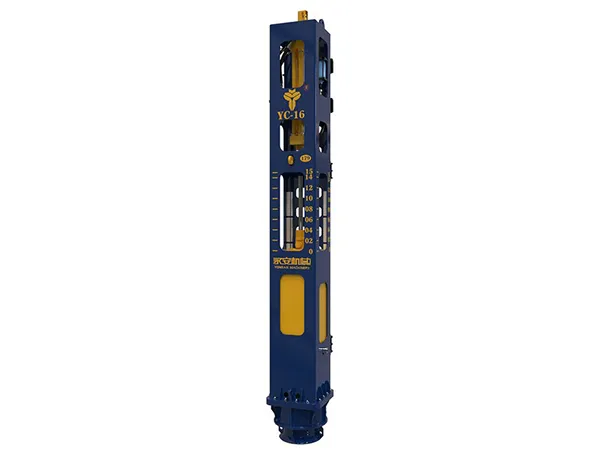

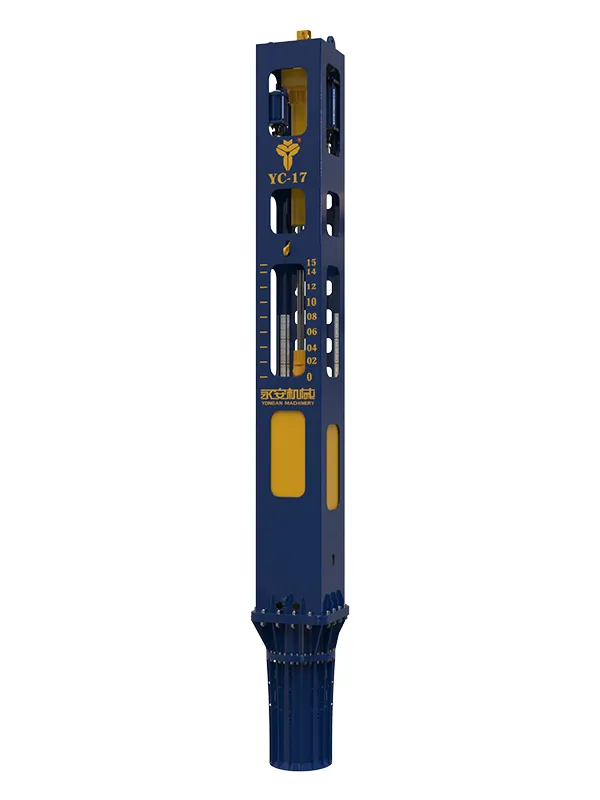

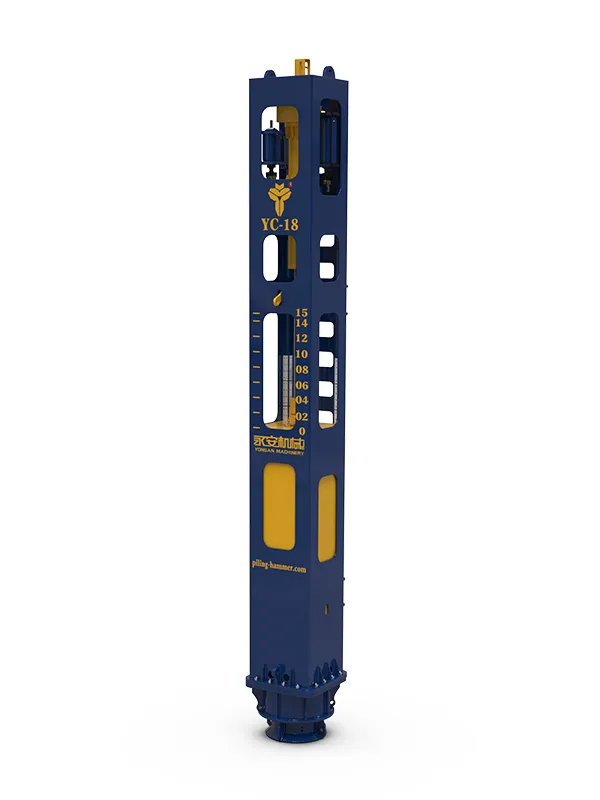

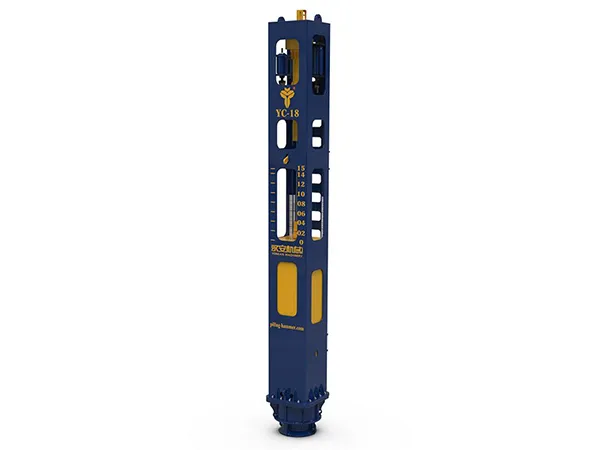

| Model | YC-11 |
| Unit | Metric |
| Impact Energy | 165 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 100/30 bpm |
| Ram Weight | 11000 kg |
| Dimensions (L×W×H) | 6790×1100×1290 mm |
| Weight | 16000 kg |
| Recommended Power Pack | 400P |
| Model | YC-12 |
| Unit | Metric |
| Impact Energy | 180 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/32 bpm |
| Ram Weight | 12000 kg |
| Dimensions (L×W×H) | 7100×1185×1300 mm |
| Weight | 18000 kg |
| Recommended Power Pack | 300P |
| Model | YC-14 |
| Unit | Metric |
| Impact Energy | 210 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 14000 kg |
| Dimensions (L×W×H) | 7510×1185×1300 mm |
| Weight | 20000 kg |
| Recommended Power Pack | 400P |
| Model | YC-15 |
| Unit | Metric |
| Impact Energy | 225 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 15000 kg |
| Dimensions (L×W×H) | 7250×1100×1290 mm |
| Weight | 22000 kg |
| Recommended Power Pack | 400P |
| Model | YC-16 |
| Unit | Metric |
| Impact Energy | 240 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 16000 kg |
| Dimensions (L×W×H) | 7760×1185×1300 mm |
| Weight | 22000 kg |
| Recommended Power Pack | 400P |
| Model | Y-17 |
| Unit | Metric |
| Impact Energy | 255 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 17000 kg |
| Dimensions (L×W×H) | 7960×1185×1300 mm |
| Weight | 23000 kg |
| Recommended Power Pack | 400P |
| Model | YC-18 | |
| Unit | Metric | |
| Impact Energy | 270 kNm | |
| Working Stroke | 1500 mm | |
| Impact Frequency | 70/30 bpm | |
| Ram Weight | 18000 kg | |
| Dimensions (L×W×H) | 8400×1185×1300 mm | |
| Weight | 24000 kg | |
| Recommended Power Pack | 400P | |
Mounting Options
Crawler Crane
Floating Crane

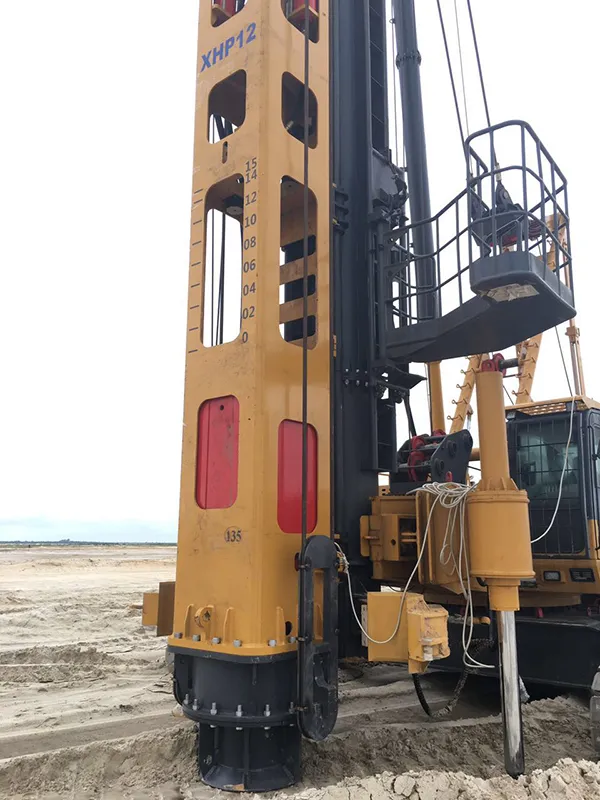

Crawler Rig Lead Supported
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
Suitable Pile Types
- Steel Tubular Piles
- Concrete Piles
- Reinforced Concrete Piles
- Precast Concrete Piles
- H-Piles
- U-Piles
Parts & Projects
-

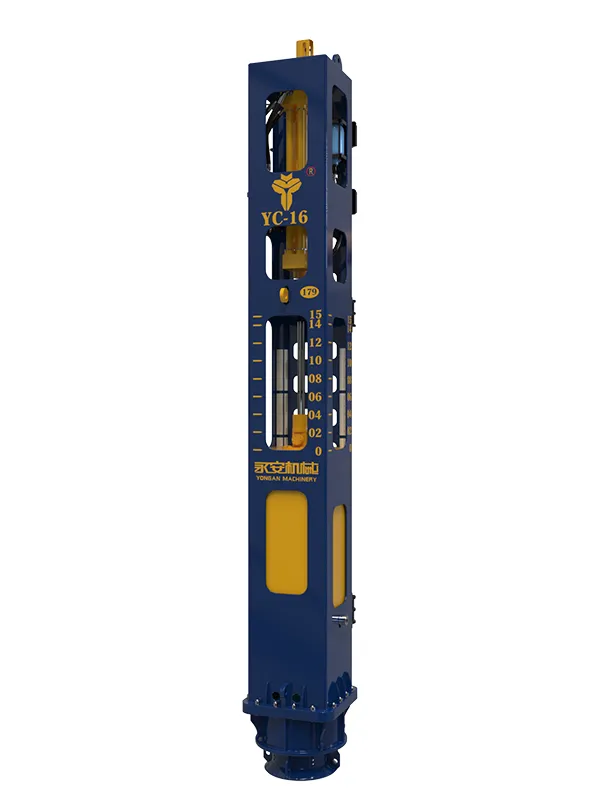

Qualified Ram
-
Customized Pile Cap
-
Customized Pile Cap
-
Customized Pile Cap
-
Electric Remote Control System
-
Durable Buffer Parts
-
Double-Layer Hydraulic Cylinder Design
-
Various Installament Methods
-
Various Installament Methods
-
Various Installament Methods
-
Seawater Cooling System
-
Efficient Energy Teansfer & Plie Driving Efficiency

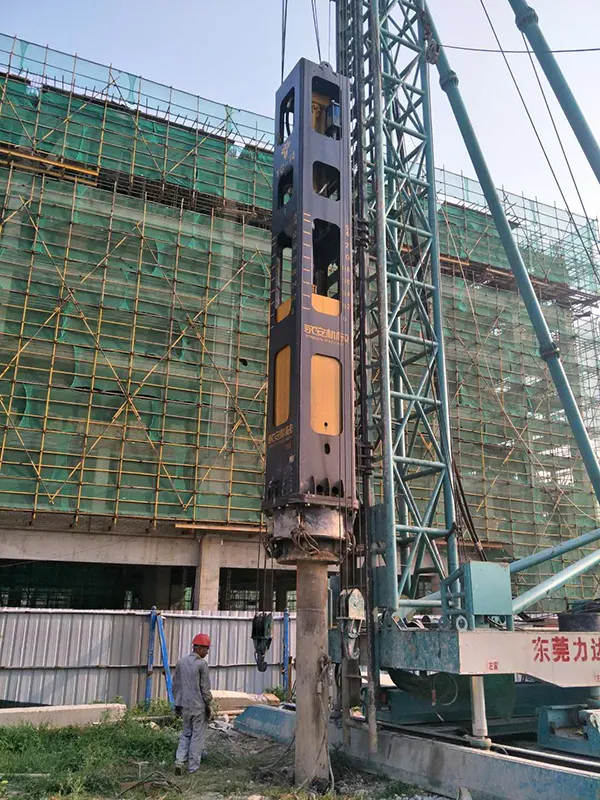

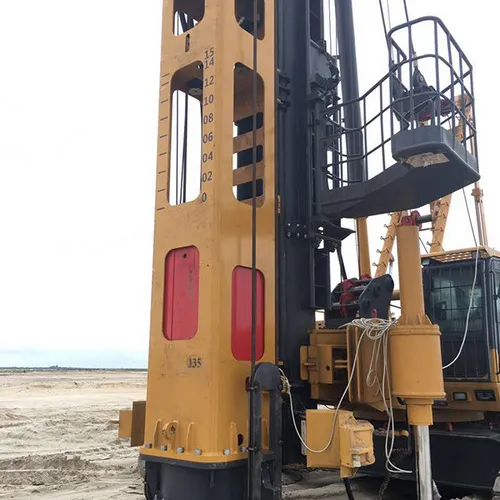

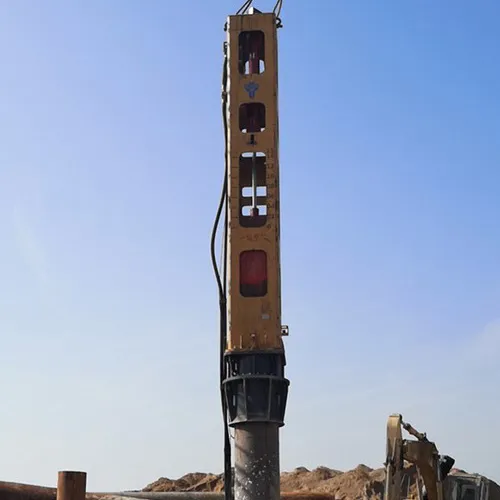

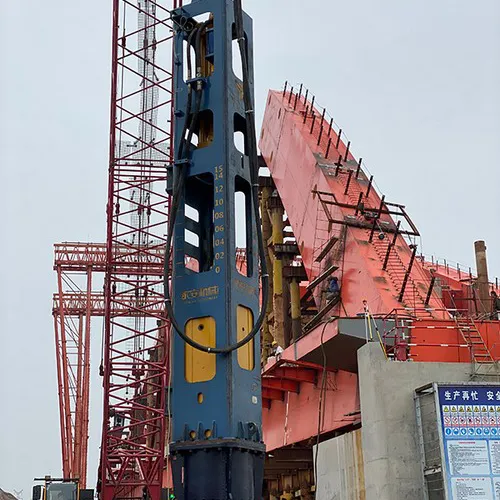

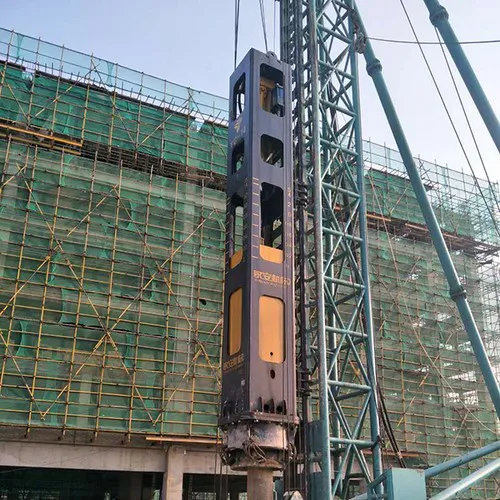

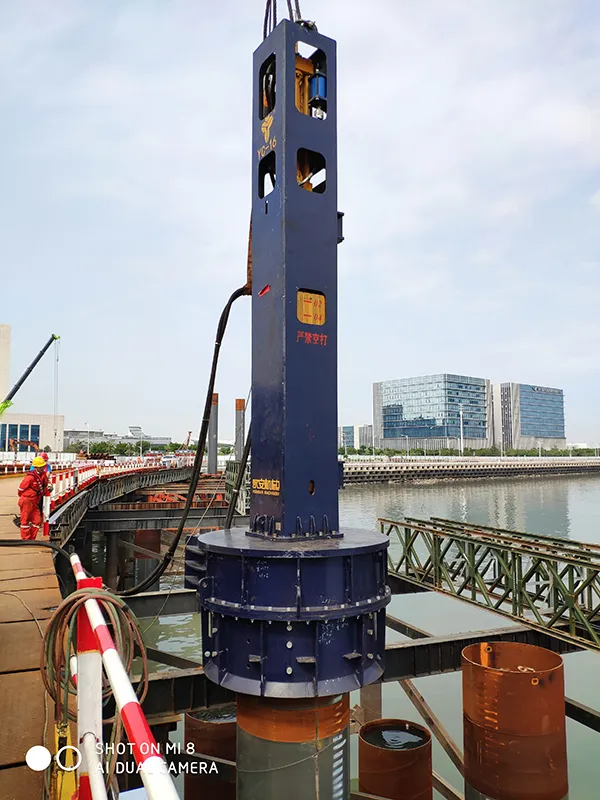

Related Case Studies

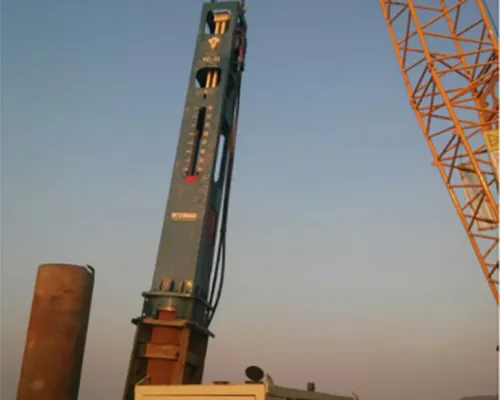

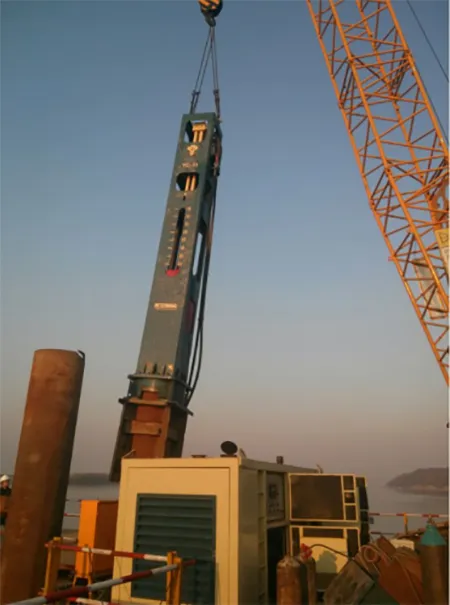

Construction Projects using YC-11 Hydraulic Impact Hammer
Mulan Bridge Construction in Harbin
- Pile type: tubular piles
- Diameter: 1000 mm
- Driving depth: 18 m
- Soil type: sandy soil and weathered land

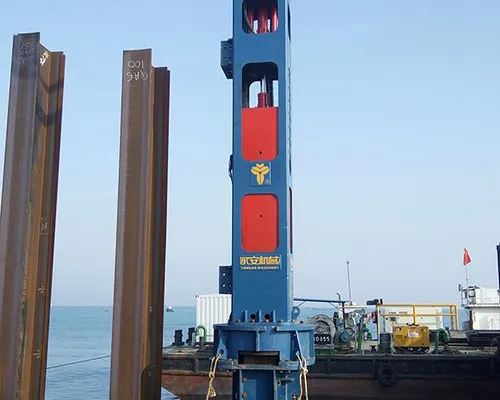

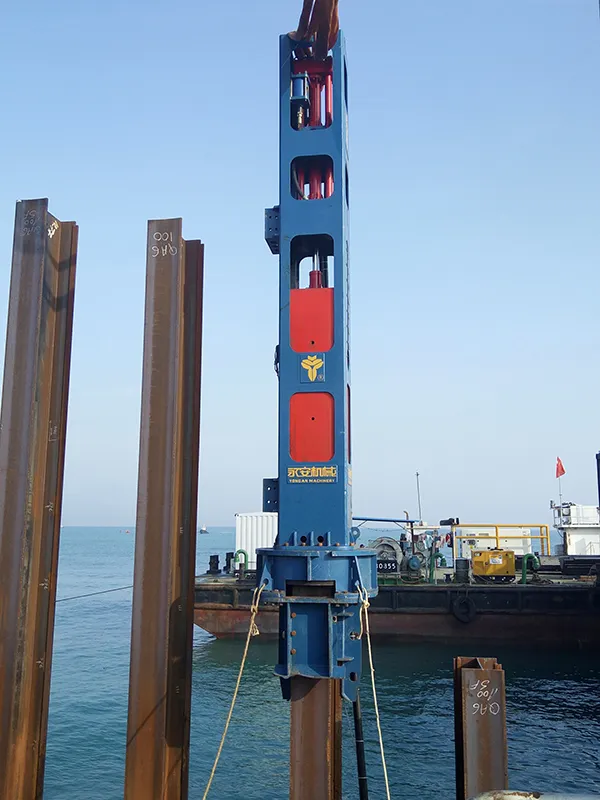

Harbour Construction in Ashdod, Israel
- Pile type: H-piles (length: 19.3/22 m, width: 0.527/0.8 m), U-piles (length: 17.5 m, width: 1.4m)
- Driving depth: 11/13m (H-pile), 8.5 m (U-pile)
- Soil type: silt, clay, and dense soil
Construction Projects using YC-12 Hydraulic Impact Hammer

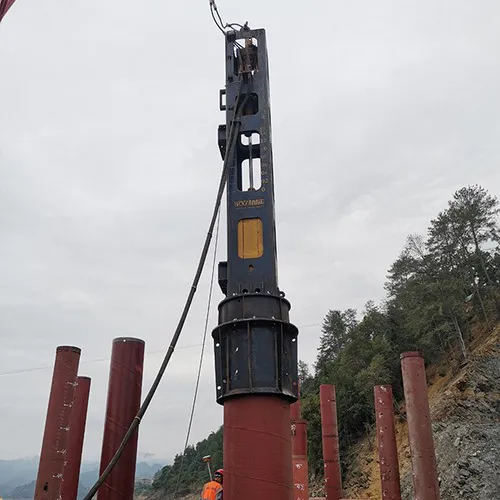

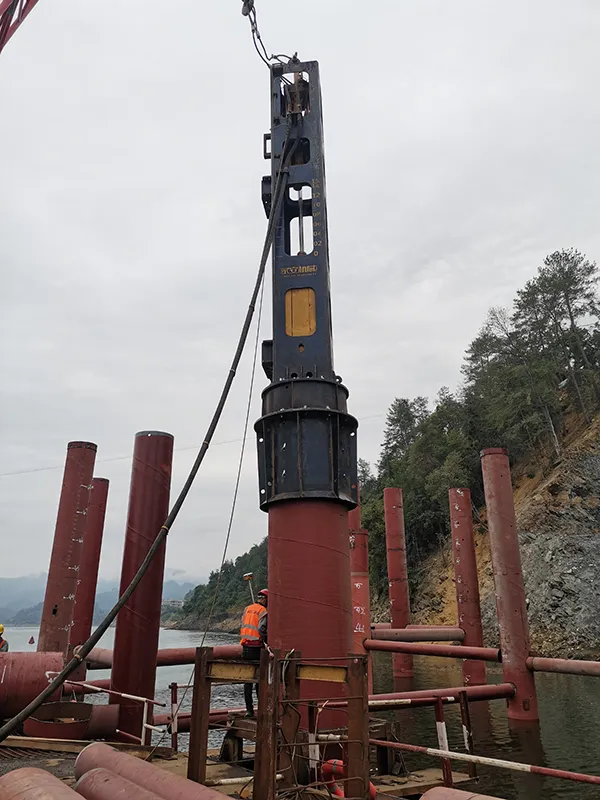

Shizishan Bridge Construction in Anhua County, Hunan
- Pile type: tubular piles
- Diameter: 1200 mm
- Thickness: 14 mm
- Pile length: 47 m (driving depth: 15 m)
- Application: trestle bridge platform
- Soil type: weathered stone
- Pile sinking time: 34 min

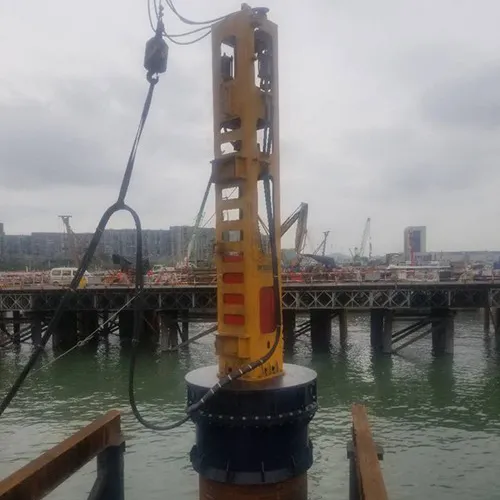

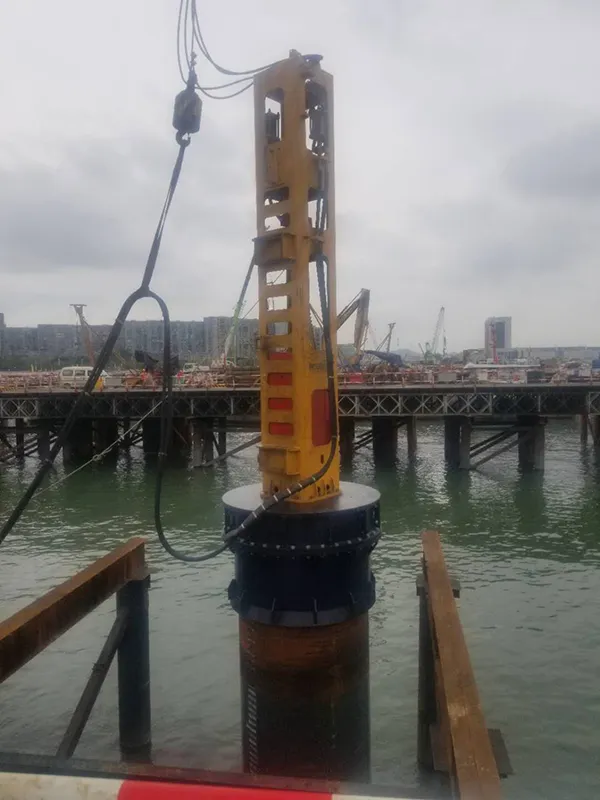

The Second Channel Construction in Xiamen
- Pile type: tubular piles
- Diameter: 1850 mm
- Thickness: 25 mm
- Pile length: 15 m (driving depth: 13 m)
- Application: trestle bridge platform
- Soil type: mud
- Pile sinking time: about 30 min

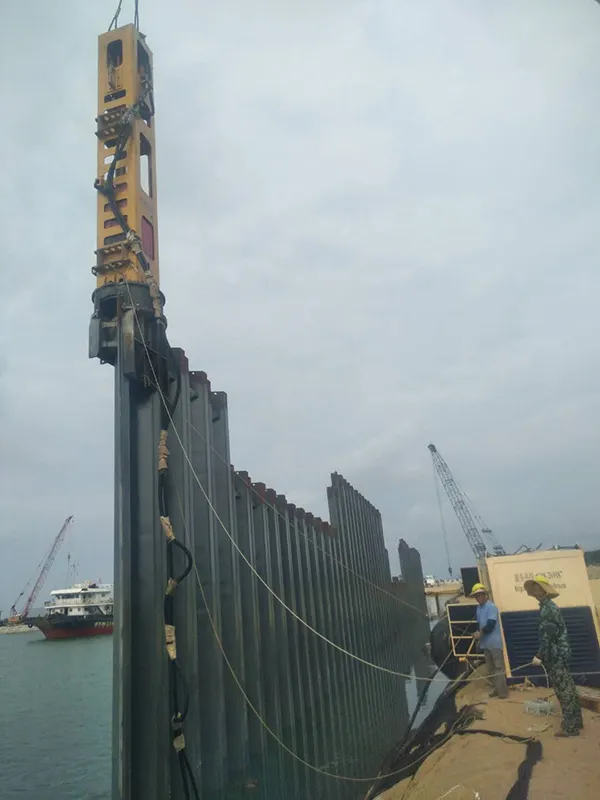

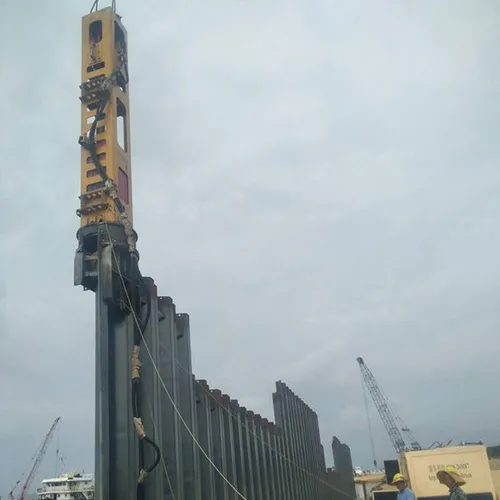

The West Island Construction in Hainan
- Pile type: steel sheet piles
- Driving depth: 15m
- Application: dock construction (680 piles)

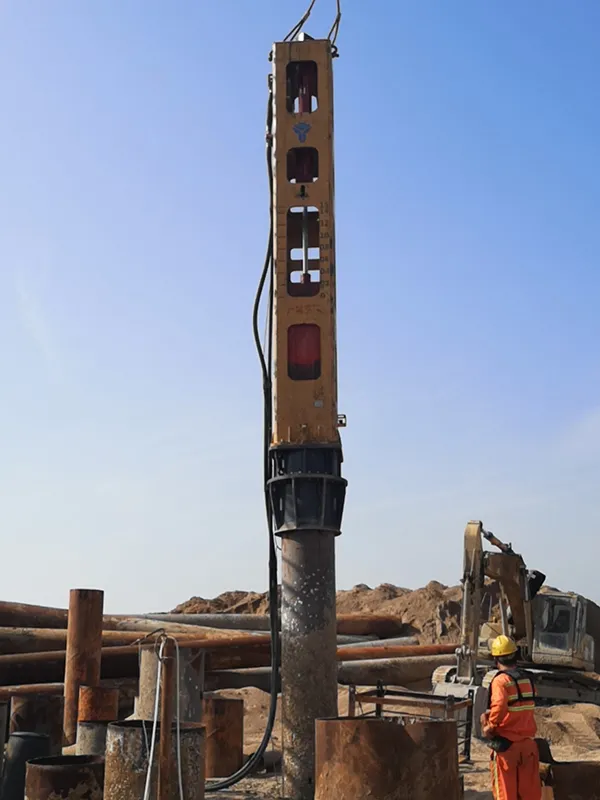

Oil Refinery Construction in Lagos, Nigeria
- Pile type: tubular piles
- Diameter: 500 mm
- Driving depth: 28 m
- Application: driving 10,000 piles
- Soil type: mud
- 40 YC-12 machines are used in this project.
Shenzhen-Zhongshan Bridge Construction in Guangdong
- Pile type: steel tubular piles
- Diameter: 820 mm
- Thickness: 10 mm
- Pile length: 30 m (driving depth: 27 m)
- Application: bridge construction
- Soil type: silt and mud
- Pile sinking time: about 60 min
Construction Projects using YC-14 Hydraulic Impact Hammer
Construction in Zhangzhou, Fujian
- Pile type: 450x450 mm square piles
- Diameter: 1850 mm
- Thickness: 25 mm
- Pile length: 15 m
- Driving depth: about 40 m (maximum depth: 43.4 m)
- Application: trestle bridge platform
- Soil type: gravel (11 m) and sand (5 m)
- Pile sinking time: about 30 min

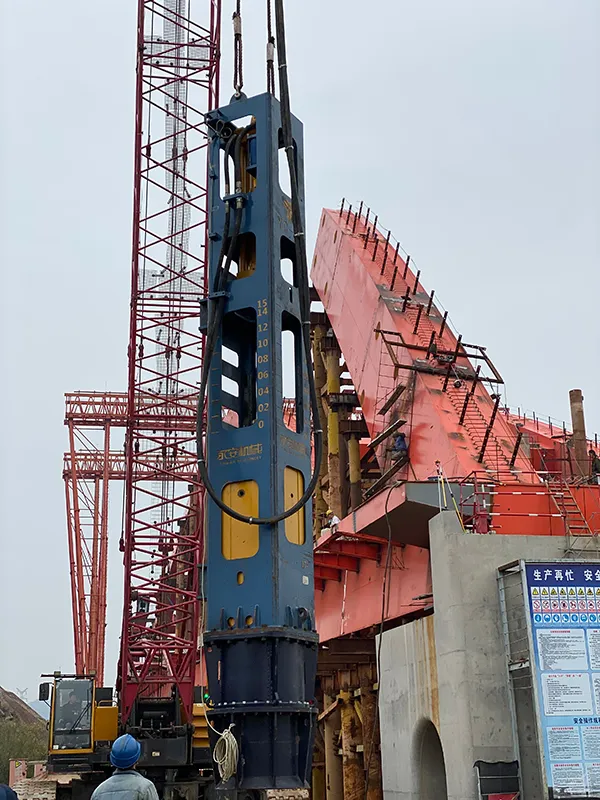

Hanjiang-Yangtze River Bridge Construction in Hubei
- Project time: December, 2019
- Pile type: tubular piles
- Diameter: 820 mm
- Pile length: 25 m (driving depth: 25 m)
- Application: trestle bridge piles
- Soil type: silt
- Pile sinking time: about 30 min

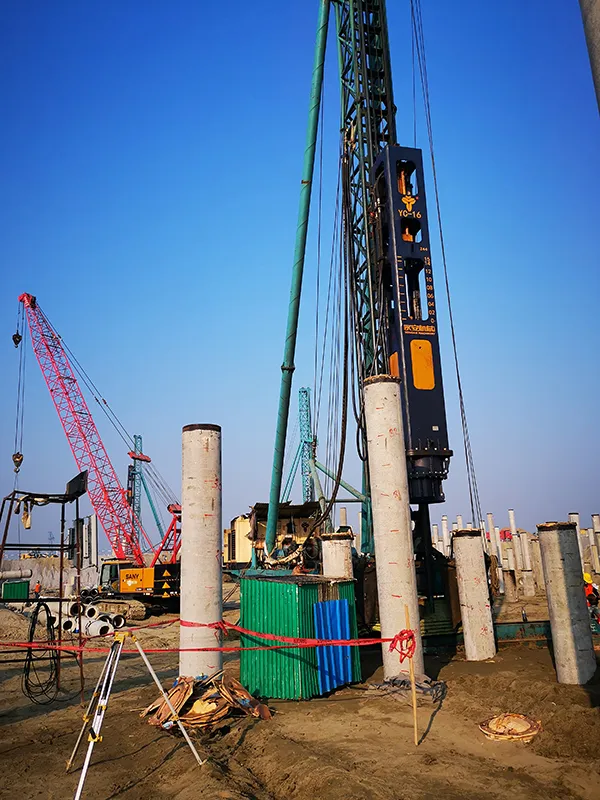

Construction Projects using YC-16 Hydraulic Impact Hammer

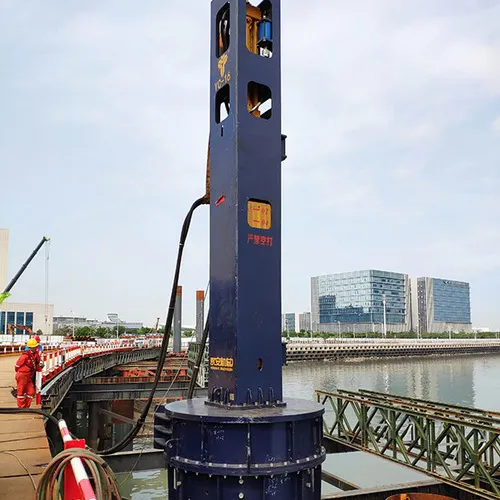

The Second East Channel Construction in Xiamen
- Project time: March, 2020
- Pile type: tubular piles
- Diameter: 1550/1850/2150 mm
- Pile length: 21/32/30 m
- Thickness: 20 mm
- Application: supporting piles
- Soil type: mud and silt clay, weathered granite
- Pile sinking time: 15-25 min

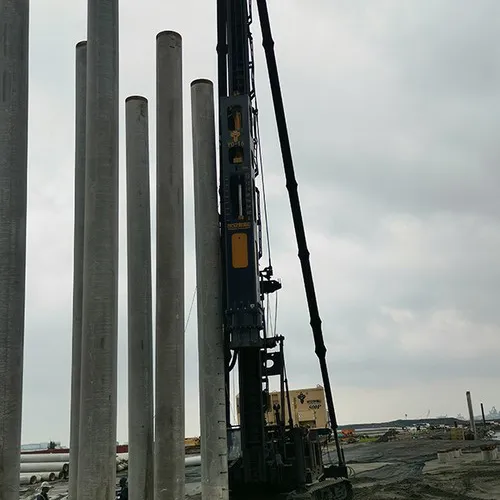

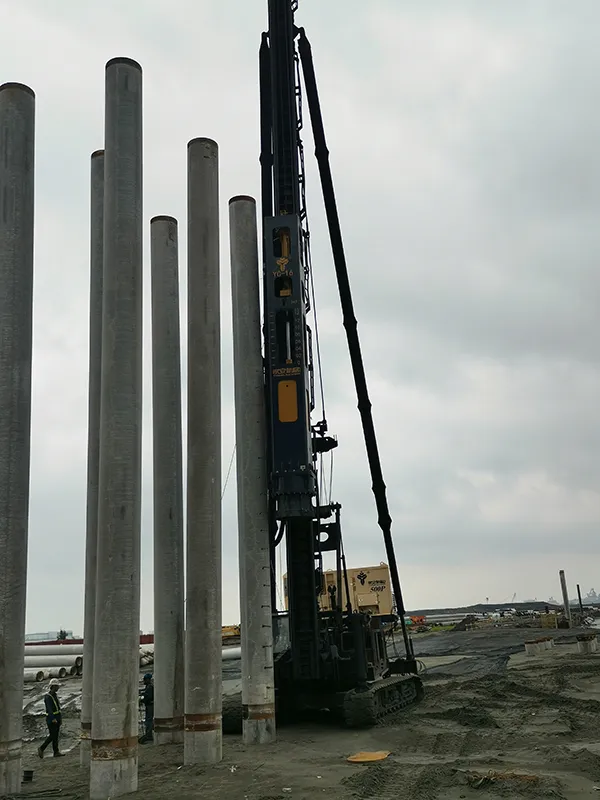

Port of Taichung Construction
- Pile type: precast cement piles
- Diameter: 830 mm
- Driving depth: 40-50 m

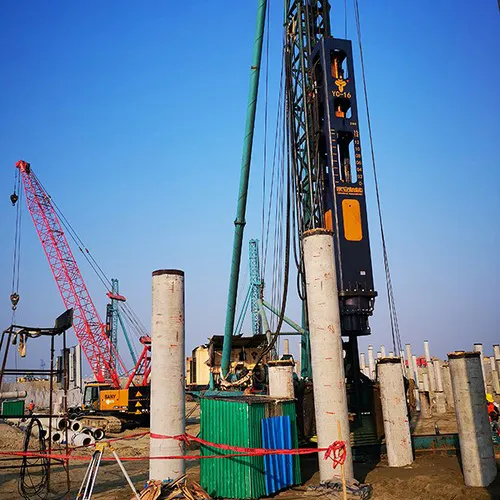

Power Plant Construction in Matarbari, Bangladesh
- Project time: March, 2020
- Pile type: cement tubular piles
- Diameter: 600 mm
- Pile length: 28 m (driving depth: 28 m)
- Application: plant foundation
Construction Projects using YC-17 Hydraulic Impact Hammer

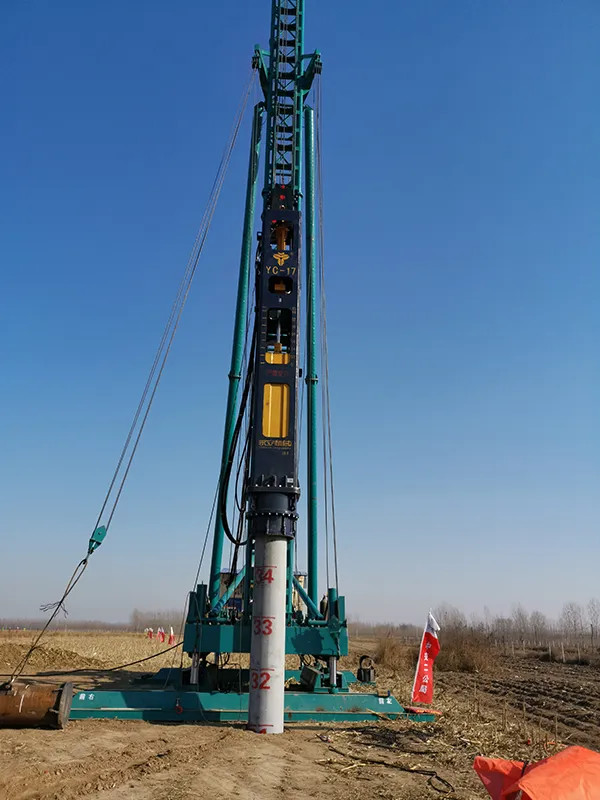

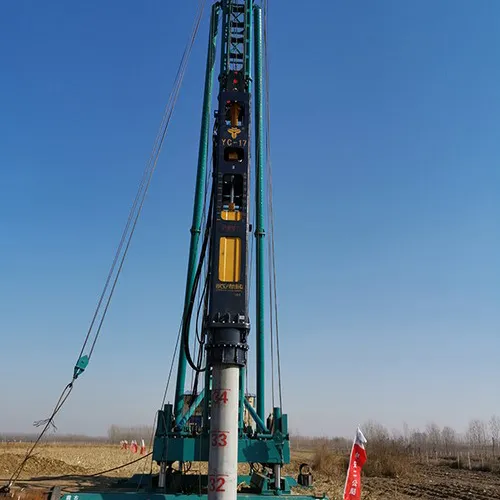

Rongwu Highway Construction
- Pile type: precast cement tubular piles
- Diameter: 700 mm
- Pile length: 37 m (driving depth: 37 m)
- Soil type: yellow clay with sand
