Crane suspended vibratory hammer for pile driving or extracting
Our hydraulic vibratory hammers with eccentric mass (L series) can be equipped with beams and clamps for driving and extracting medium and large diameter tubular piles. Beam and clamp installation empowers our hammers with evenly-distributed centrifugal force on the tubular piles, effectively preventing tearing caused by thin pile walls. Considering limited construction spaces or headroom, the height is adjusted for smoother operation, offering flexible and versatile project solutions. L series hammers vary in maximum centrifugal force, ranging from 2920kN to 4300kN. Also, hammer customization is available to meet specific requirements of our clients.
Request a Quote
Request a Quote
Model

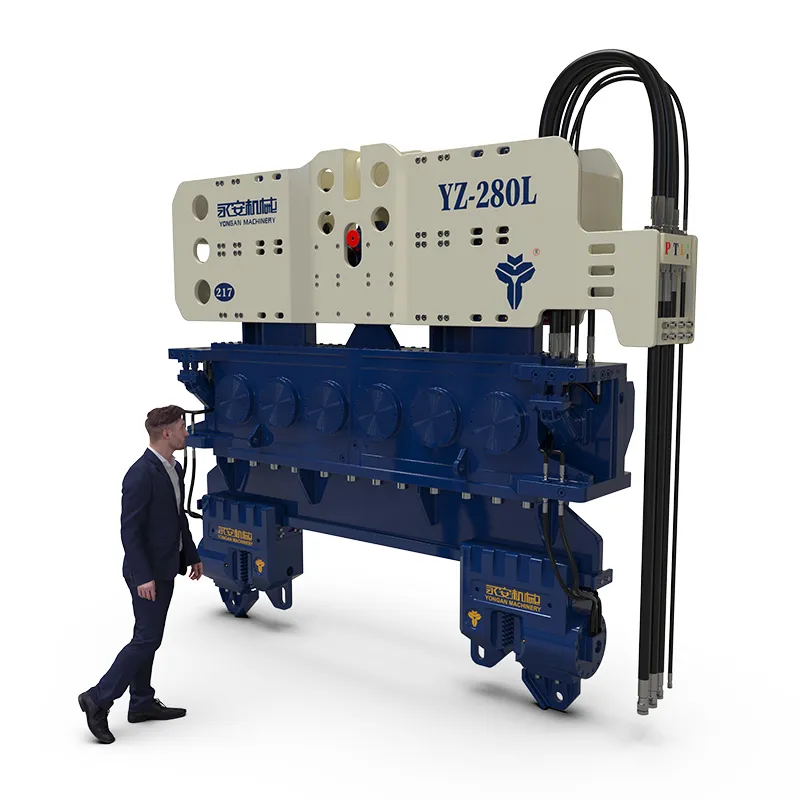

YZ-280L
Unit
Metric
US
Eccentric Moment
92 kg.m
7985 lbs.in
Maximum Frequency
1700 rpm
1700 rpm
Maximum Centrifugal Force
2920 kN
328 tons
Maximum Line Pull Force
800 kN
90 tons
Maximum Amplitude
30 mm
1.18 in
Maximum Oil Flow
890 L/min
235 gpm
Weight (without clamps and beam)
9600 kg
21164 lbs
Dimensions (L×W×H)
3855×705×2035 mm
151×28×80 in
Recommended Power Pack
1000P
Request a Quote
Model

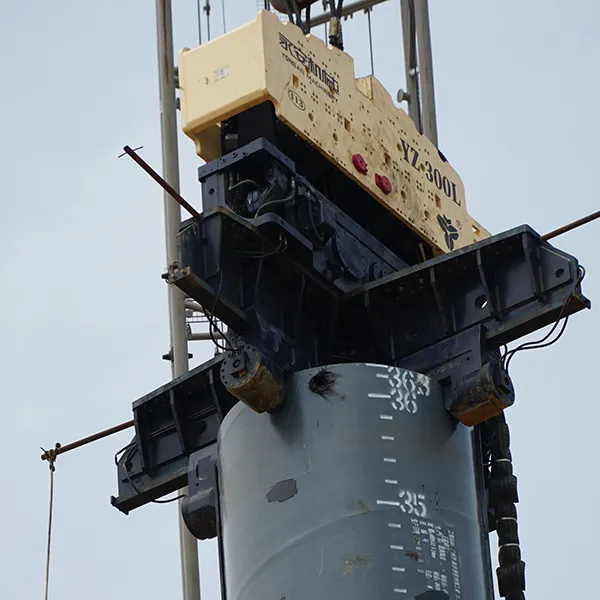

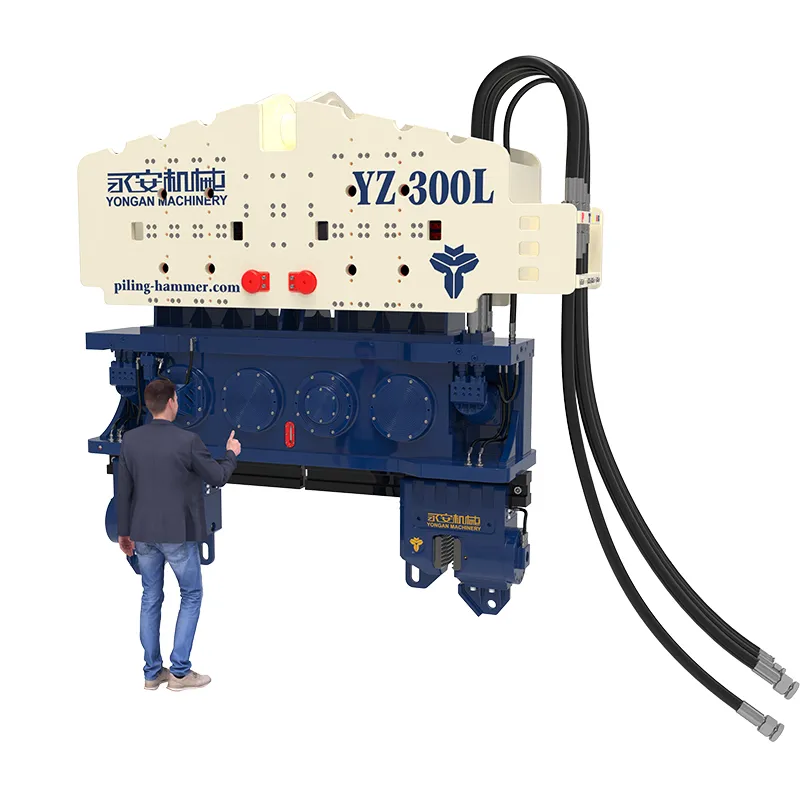

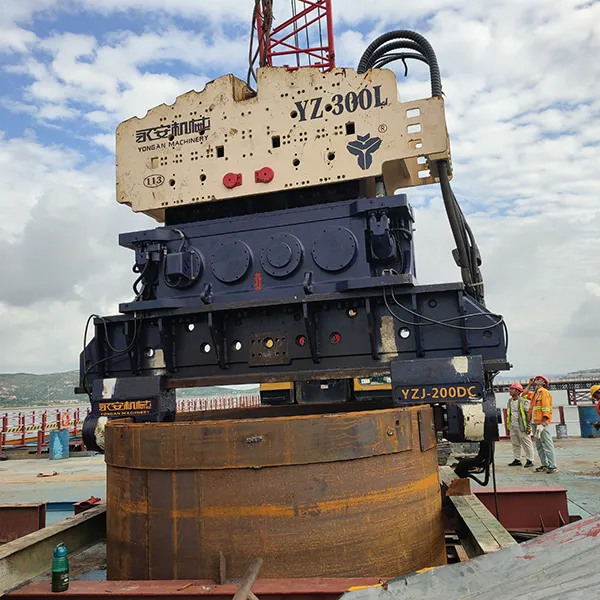

YZ-300L
Unit
Metric
US
Eccentric Moment
133 kg.m
11544 lbs.in
Maximum Frequency
1400 rpm
1400 rpm
Maximum Centrifugal Force
2860 kN
321 tons
Maximum Line Pull Force
1600 kN
180 tons
Maximum Amplitude
30 mm
1.18 in
Maximum Oil Flow
1040 L/min
274 gpm
Weight (without clamps and beam)
14800 kg
32628 lbs
Dimensions (L×W×H)
3460×850×2480 mm
136×33×97 in
Recommended Power Pack
1200P
Request a Quote
Model

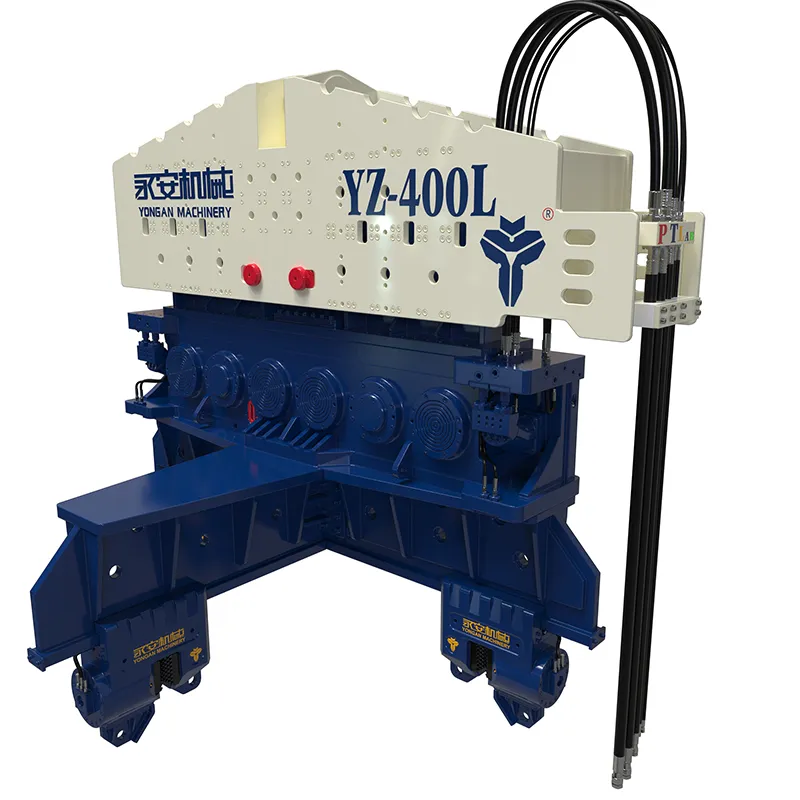

YZ-400L
Unit
Metric
US
Eccentric Moment
200 kg.m
17360 lbs.in
Maximum Frequency
1400 rpm
1400 rpm
Maximum Centrifugal Force
4300 kN
483 tons
Maximum Line Pull Force
2500 kN
281 tons
Maximum Amplitude
37 mm
1.45 in
Maximum Oil Flow
1220 L/min
322 gpm
Weight (without clamps and beam)
21000 kg
54674 lbs
Dimensions (L×W×H)
4600×940×2650 mm
181×37×104 in
Recommended Power Pack
1200P
Mounting Options
L series hamers need to be mounted on crawler cranes, rough terrain cranes, or other similar equipment.

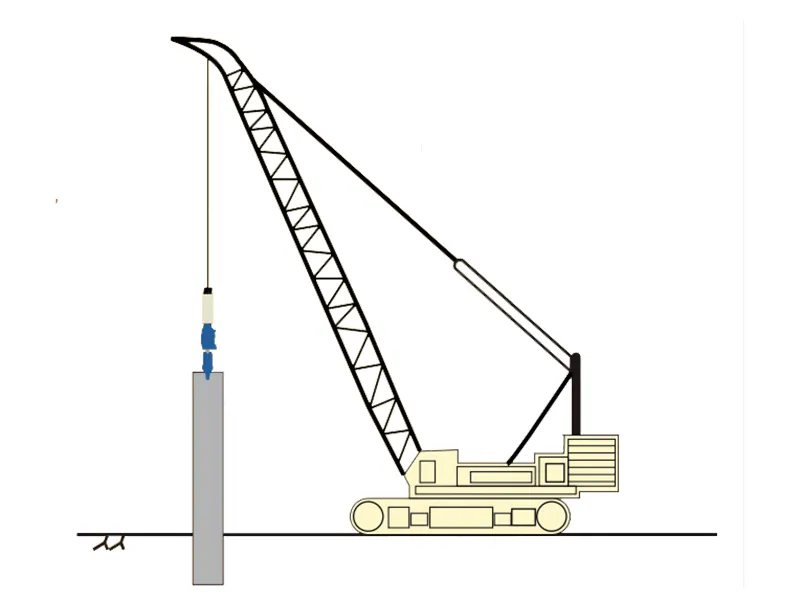

Crawler Crane
Floating Crane

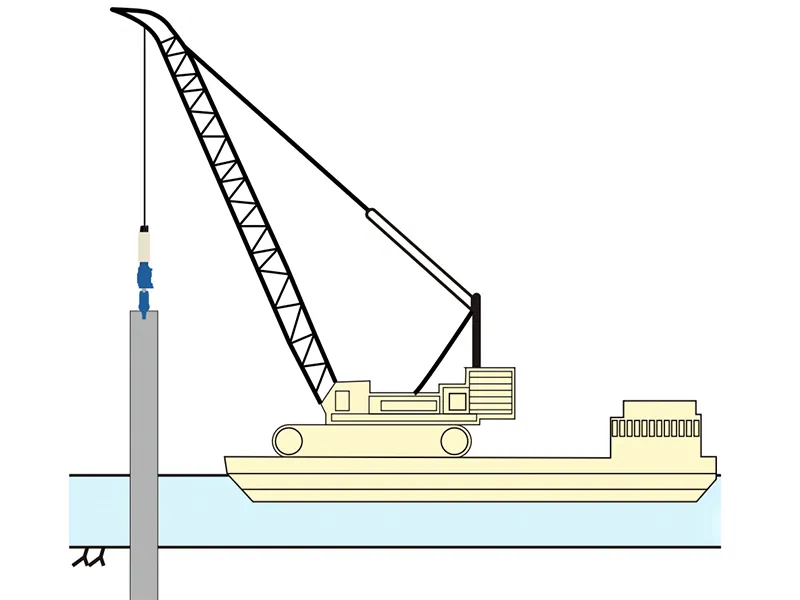

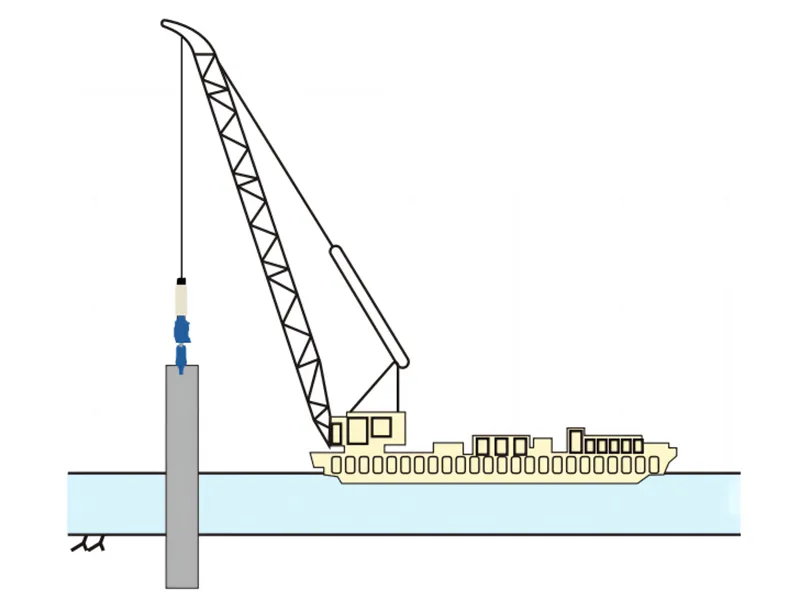

Crane-Fitted Barge

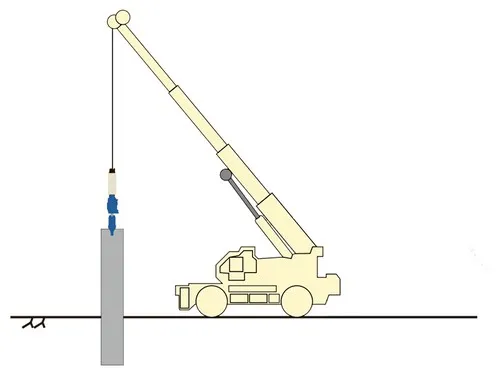

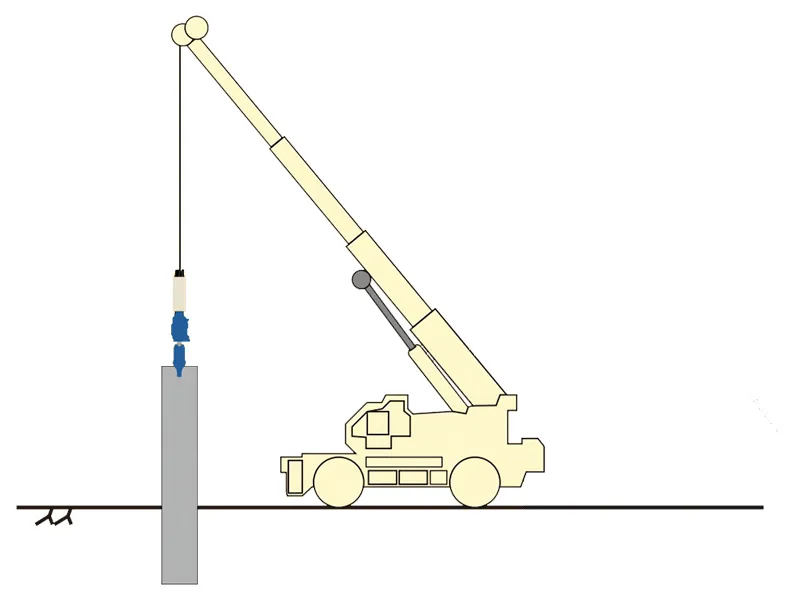

Rough Terrain Crane

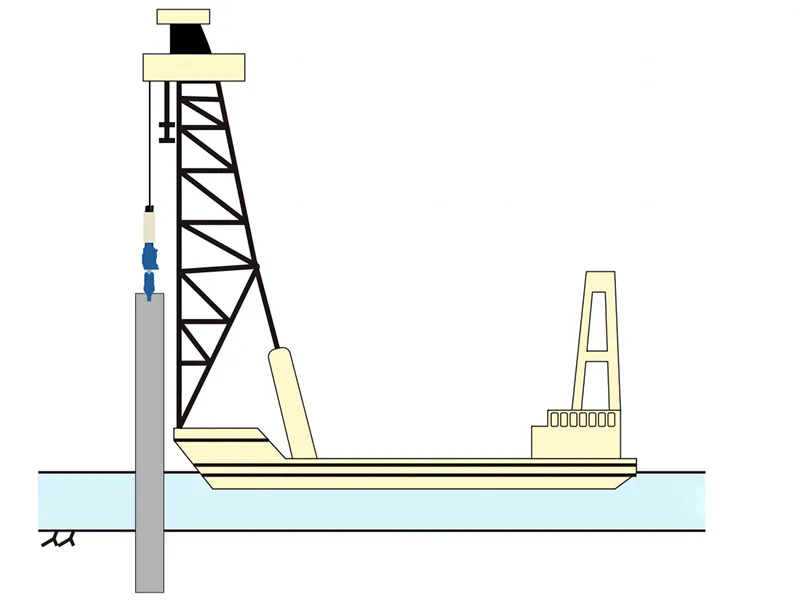

Piling Barge
