Our resonance free variable moment vibratory hammers (VM series) stand out for their high frequency and resonance resistance features, offering a maximum centrifugal force range of 1030kN to 4350kN. Customization is available to meet your specific requirements. The high frequency enables our hammers to penetrate the ground effectively. Resonance resistance ensures safer piling. VM series hammers can be installed easily and equipped with clamps and beams, providing stable and efficient piling solutions.

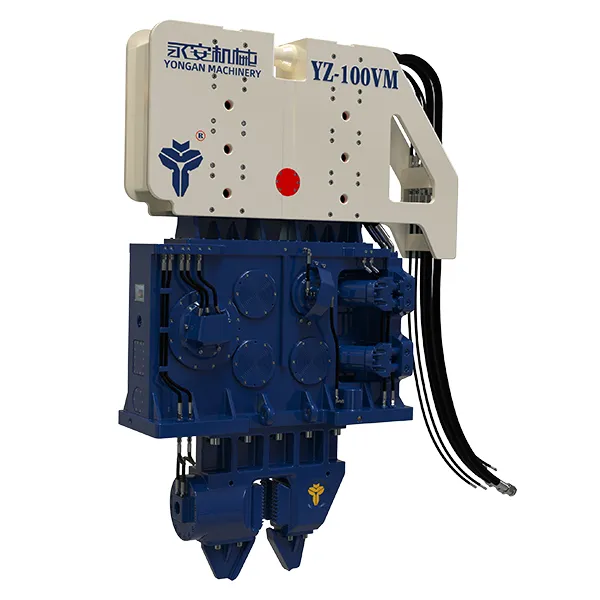

| Model | YZ-100VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-15 kg.m | 0-1302 lbs.in |
| Maximum Frequency | 2500 rpm | 2500 rpm |
| Maximum Centrifugal Force | 1030 kN | 116 tons |
| Maximum Line Pull Force | 300 kN | 34 tons |
| Maximum Amplitude | 13 mm | 0.51 in |
| Maximum Oil Flow | 495 L/min | 131 gpm |
| Weight (without clamps and beam) | 4800 kg | 10560 lbs |
| Dimensions (L×W×H) | 2100×515×2250 mm | 82×20×88 in |

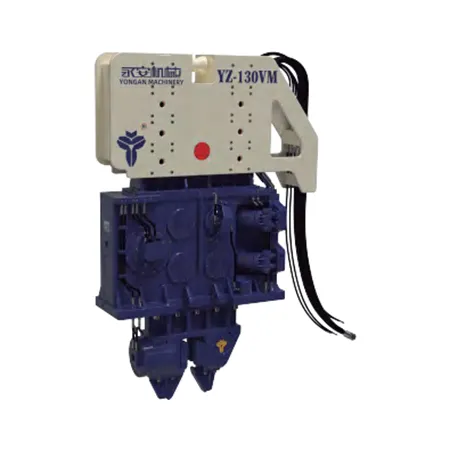

| Model | YZ-130VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-23 kg.m | 0-1996 lbs.in |
| Maximum Frequency | 2300 rpm | 2300 rpm |
| Maximum Centrifugal Force | 1340 kN | 150 tons |
| Maximum Line Pull Force | 400 kN | 45 tons |
| Maximum Amplitude | 15 mm | 0.59 in |
| Maximum Oil Flow | 620 L/min | 164 gpm |
| Weight (without clamps and beam) | 5320 kg | 11704 lbs |
| Dimensions (L×W×H) | 2280×620×2300 mm | 89×24×90 in |

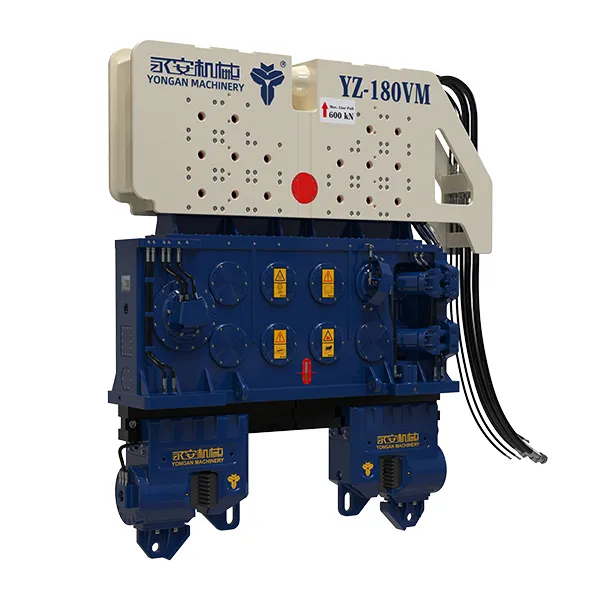

| Model | YZ-180VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-35 kg.m | 3038 lbs.in |
| Maximum Frequency | 2200 rpm | 2200 rpm |
| Maximum Centrifugal Force | 1860 kN | 209 tons |
| Maximum Line Pull Force | 600 kN | 67 tons |
| Maximum Amplitude | 15 mm | 0.59 in |
| Maximum Oil Flow | 820 L/min | 216 gpm |
| Weight (without clamps and beam) | 6300 kg | 13860 lbs |
| Dimensions (L×W×H) | 2300×655×2350 mm | 90×26×92 in |

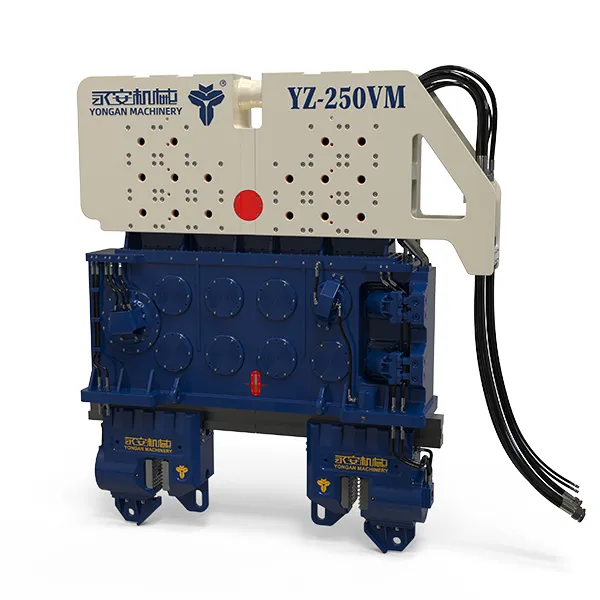

| Model | YZ-250VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-42 kg.m | 0-3645 lbs.in |
| Maximum Frequency | 2300 rpm | 2300 rpm |
| Maximum Centrifugal Force | 2430 kN | 273 tons |
| Maximum Line Pull Force | 800 kN | 90 tons |
| Maximum Amplitude | 19 mm | 0.74 in |
| Maximum Oil Flow | 1060 L/min | 280 gpm |
| Weight (without clamps and beam) | 7600 kg | 16720 lbs |
| Dimensions (L×W×H) | 2910×600×2300 mm | 114×23×90 in |

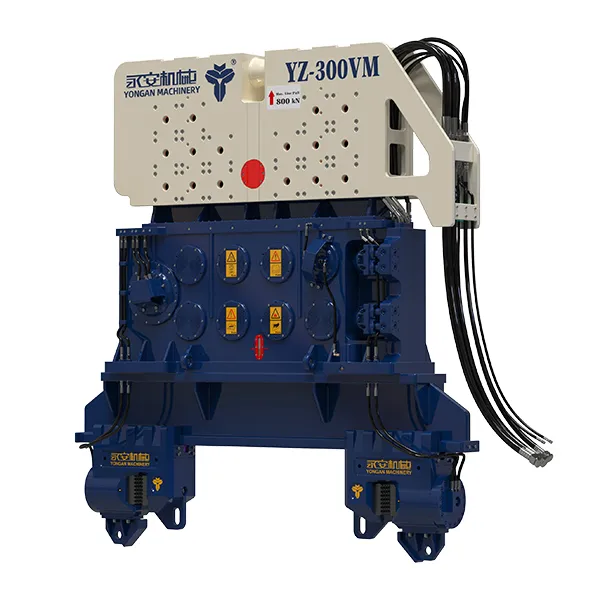

| Model | YZ-300VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-52 kg.m | 0-4513 lbs.in |
| Maximum Frequency | 2300 rpm | 2300 rpm |
| Maximum Centrifugal Force | 3020 kN | 339 tons |
| Maximum Line Pull Force | 800 kN | 90 tons |
| Maximum Amplitude | 18 mm | 0.74 in |
| Maximum Oil Flow | 1210 L/min | 319 gpm |
| Weight (without clamps and beam) | 10800 kg | 23760 lbs |
| Dimensions (L×W×H) | 3050×620×2300 mm | 119×24×90 in |

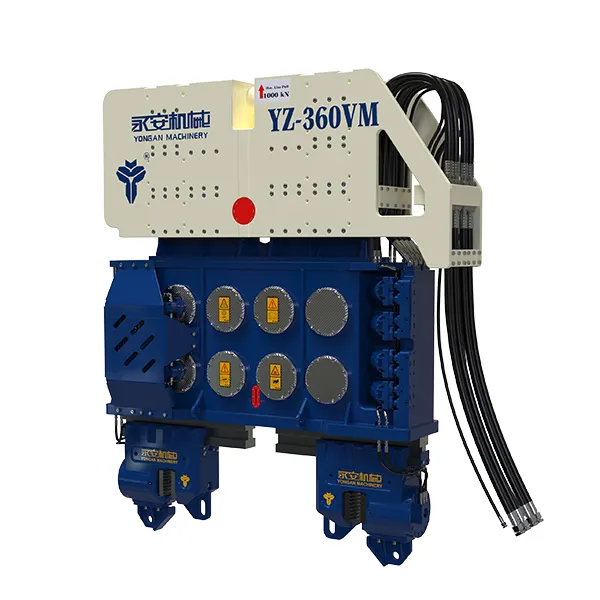

| Model | YZ-360VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-62 kg.m | 0-5381 lbs.in |
| Maximum Frequency | 2300 rpm | 2300 rpm |
| Maximum Centrifugal Force | 3600 kN | 404 tons |
| Maximum Line Pull Force | 1000 kN | 112 tons |
| Maximum Amplitude | 18.5 mm | 0.72 in |
| Maximum Oil Flow | 1598 L/min | 422 gpm |
| Weight (without clamps and beam) | 11500 kg | 25300 lbs |
| Dimensions (L×W×H) | 3100×680×2380 mm | 121×27×93 in |

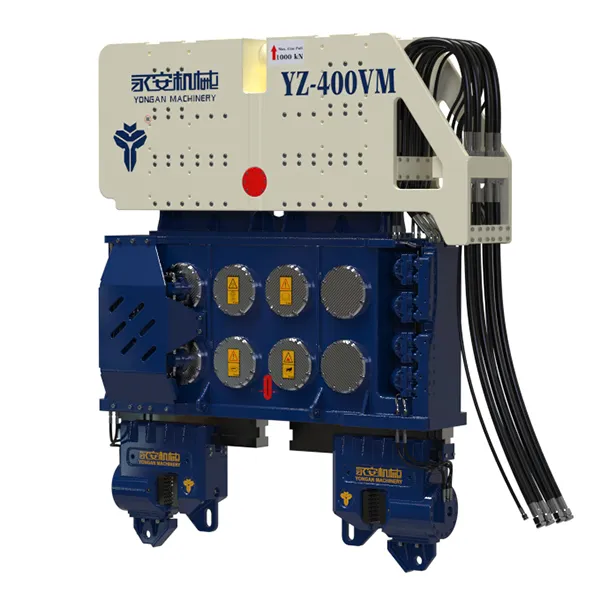

| Model | YZ-400VM | |
| Unit | Metric | US |
| Eccentric Moment | 0-90 kg.m | 0-7811 lbs.in |
| Maximum Frequency | 2100 rpm | 2100 rpm |
| Maximum Centrifugal Force | 4350 kN | 488 tons |
| Maximum Line Pull Force | 1000 kN | 112 tons |
| Maximum Amplitude | 21.5 mm | 0.84 in |
| Maximum Oil Flow | 2050 L/min | 541 gpm |
| Weight (without clamps and beam) | 12200 kg | 26840 lbs |
| Dimensions (L×W×H) | 3100×730×2665 mm | 121×29×104 in |
VM series hammers need to be mounted on crawler cranes, rough terrain cranes, or other similar equipment.
Crawler Crane
Floating Crane
Crane-Fitted Barge
Rough Terrain Crane
Piling Barge
